Ignition Components

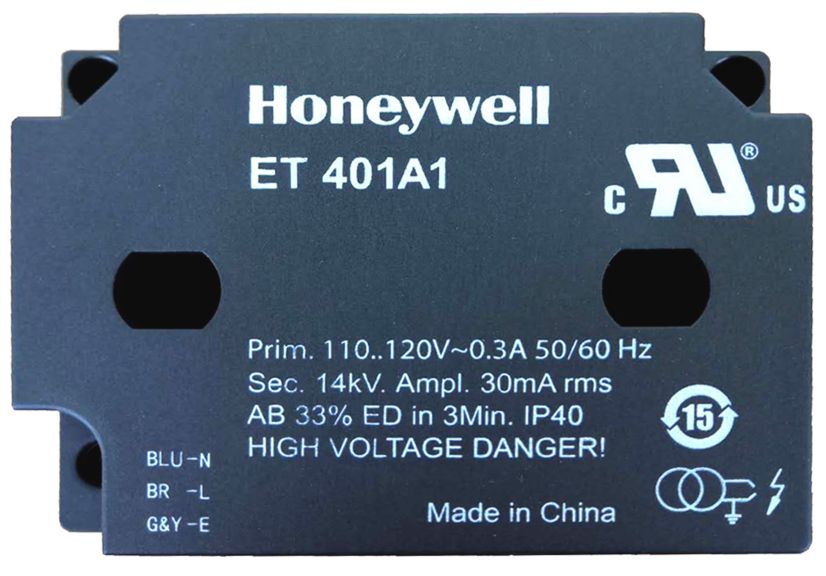

ET401/ET402
Ignition transformers that are suitable to be installed in burner control boxes for gas or oil fuel burner systems.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features & Benefits:
- Ignites interrupted gas pilots with electrode spacings between 0.12 to 0.20 inches (3 and 5 mm)
- ET401A1 has 14.0 kV output peak voltage for a reliable light-off
- Generates the lowest electromagnetic interferences of all known electronic ignition devices; especially important if the burner has to comply with EN 55014-2
- ET401A1 ignition transformer combines low power consumption with a low inrush current
- The dimensions of the housing and mounting holes are such that the ET401A1 can be mounted underneath the burner control box
- Meets UL Standards 1012 and 506. Ambient Temperature Range: 5 to 140°F (-15 to 60°C)
- Approximate, Dimensions: 2 57/64 in. high x 3 15/16 in. wide x 1 41/64 in deep (73.5 mm high x 100 mm wide x 41.5 mm deep)
- Weight lb (kg): 1.2 lb (0.55 kg)
- Approvals, Underwriters Laboratories Inc.: Component Recognized Certificate No. 20180201-E494797
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
ET401A1/B
Ignition transformer 110V UL-14kV-Bulk
ET401A1/B
Ignition transformer 110V UL-14kV-Bulk
ET401A1/U
Ignition transformer 110V UL-14kV-Unit
ET401A1/U
Ignition transformer 110V UL-14kV-Unit
ET401RC
Transformer (110..120vac), For Rajah
ET401RC
Transformer (110..120vac), For Rajah
X42008850-002
2 Label 3x1-3/442008850-002
X42008850-002
2 Label 3x1-3/442008850-002
