Gas Igniters GHE
Continuous operation, high energy spark Ignitor to directly ignite all gasseous fuels for smaller 1-3MMBtu/Hr Capacity.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

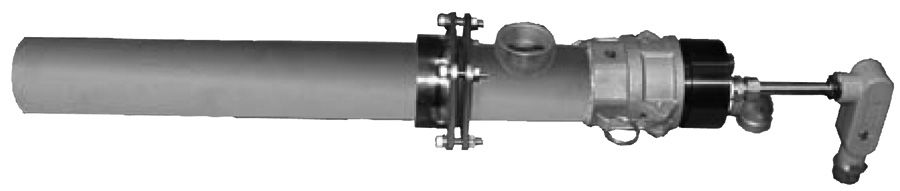

Designed for continuous operation, GHE igniters are non-fouling, inextinguishable, high-energy igniters. The self-cleaning igniter spark tip reliably ignites fuels regardless of accumulated hardened oil and debris on the tip. Three stage ignition and internal mix technology allow for consistent operation, which overcomes problems associated with external mix that are ambient temperature dependent. GHE igniters are the ideal choice for high energy output and reliable ignition.
Features & Benefits:
Features & Benefits:
- GHE gas igniter system consists of a custom length igniter system, power pack and interconnecting HT cable
- Multi stage ignition and stainless steel pilot nozzle
- Self cleaning spark tip will work with accumulated hardened oil and other debris accumulated on tip
- GHE1-3 has flanged connection and GHE2-5 has quick disconnect or flanged connection
- Quick disconnect for HT line
- Optional NEMA 12, 4, or 4X cabinet available for power pack
- Power pack is available in 110 or 220 VAC input
- Optional optical flame monitoring
Specifications
Applications & Compatibility
- Applications
- For Flare Stacks, H₂S and Pressure Vessels, Tall Gas Incinerators, Heaters, Power Boilers; For Gaseous fuels, Liquid fuels, Solid fuels (for light-off and warm-up), Main flame support
Control, Logic & System Behavior
- Pulse Rate
- 3 to 5 pulses per second (High Energy)
Dimensions & Size Specifications
- Nominal Outer Diameter
- 2-7/8 in OD (standard), 1-7/8 in OD (High Energy only)
Ignition, Flame & Supervision Specifications
- Multi-Stage Ignition
- Class 1, Class 2, or Class 3 ignition
- Ignition Type
- High Energy (12 Joule), High Tension (10,000 Volt Output)
- Flame Detection
- Flame rod, optical detectors, or fiber optics
Installation & Mounting Specifications
- Mounting Orientation
- 1 in NPT combustion air inlet millimetre
- 1/4 in NPT plug-in millimetre
- 3/4 in NPT combustion gas inlet millimetre
- 3/8 in NPT scanner port millimetre
Dimensions & Length Specifications
- Ignitor Length
- 2 to 10 feet (in 1-foot increments)
Product Overview & Classification
- Construction
- Stainless Steel Pilot Nozzle
Processing & Performance Metrics
- Capacity Range
- 250,000 to 10,000,000 BTU/hr (70 to 2900 kW)
Applications & Compatibility
- Applications
- For Flare Stacks, H₂S and Pressure Vessels, Tall Gas Incinerators, Heaters, Power Boilers; For Gaseous fuels, Liquid fuels, Solid fuels (for light-off and warm-up), Main flame support
Control, Logic & System Behavior
- Pulse Rate
- 3 to 5 pulses per second (High Energy)
Dimensions & Size Specifications
- Nominal Outer Diameter
- 2-7/8 in OD (standard), 1-7/8 in OD (High Energy only)
Ignition, Flame & Supervision Specifications
- Multi-Stage Ignition
- Class 1, Class 2, or Class 3 ignition
- Ignition Type
- High Energy (12 Joule), High Tension (10,000 Volt Output)
- Flame Detection
- Flame rod, optical detectors, or fiber optics
Installation & Mounting Specifications
- Mounting Orientation
- 1 in NPT combustion air inlet millimetre
- 1/4 in NPT plug-in millimetre
- 3/4 in NPT combustion gas inlet millimetre
- 3/8 in NPT scanner port millimetre
Dimensions & Length Specifications
- Ignitor Length
- 2 to 10 feet (in 1-foot increments)
Product Overview & Classification
- Construction
- Stainless Steel Pilot Nozzle
Processing & Performance Metrics
- Capacity Range
- 250,000 to 10,000,000 BTU/hr (70 to 2900 kW)
- Applications : For Flare Stacks, H₂S and Pressure Vessels, Tall Gas Incinerators, Heaters, Power Boilers; For Gaseous fuels, Liquid fuels, Solid fuels (for light-off and warm-up), Main flame support
- Pulse Rate : 3 to 5 pulses per second (High Energy)
- Nominal Outer Diameter : 2-7/8 in OD (standard), 1-7/8 in OD (High Energy only)
- Multi-Stage Ignition : Class 1, Class 2, or Class 3 ignition
- Mounting Orientation : 1 in NPT combustion air inlet millimetre|1/4 in NPT plug-in millimetre|3/4 in NPT combustion gas inlet millimetre|3/8 in NPT scanner port millimetre
- Ignitor Length : 2 to 10 feet (in 1-foot increments)
- Ignition Type : High Energy (12 Joule), High Tension (10,000 Volt Output)
- Flame Detection : Flame rod, optical detectors, or fiber optics
- Construction : Stainless Steel Pilot Nozzle
- Capacity Range : 250,000 to 10,000,000 BTU/hr (70 to 2900 kW)
