Signal Processors Model 600U
Rectifiation based signal processor to be used with Flame Rods to detect presence of a flame.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

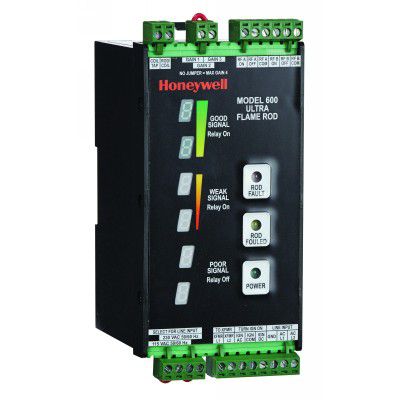

The 600U Ultra Flame Rod Signal Processor is a reliable flame detecting system which measures rectified current flow through a flame rod when in contact with a flame. When the rectified current is above the preset value, the flame relay is energized. LEDs indicate rod fouled and rod grounded and a display provides a visual indication of the flame signal and flame relay to show system status.
Features & Benefits:
Features & Benefits:
- Capable of connecting to ignition coil or ignition transformer
- When using with an ignition coil, the flame rod serves as an ignition rod
- Six numeric LEDs arranged vertically provides a visual display of flame signal
- High/low gain plug in selection
- Flame rod grounded indication
- Flame rod fouled indication
- Flame rod fault indication
Specifications
Environmental Conditions
- Ambient Temperature Range
- 0 to 60 deg C (32 to 140 deg F)
Control, Software & User Interface Specifications
- Signal Display
- 6-digit LED bar graph (1-6) for flame strength
Measurement, Accuracy & Sensing
- Sensitivity Levels
- 4 selectable gain levels via jumper
Installation & Mounting Specifications
- Mounting Types
- 35 mm DIN rail
Electrical Specifications
- Input Power
- 85-132 VAC or 170-264 VAC, 50/60 Hz voltage direct current
- Input Current
- 0.07 A at 115 VAC; 0.035 A at 230 VAC (monitoring only)
- 0.3 A at 115 VAC; 0.15 A at 230 VAC + ignition transformer current (max 5 A) (ignition on) milliampere
- Flame Rod Voltage
- 175 VAC
- Flame Rod Current
- < 0.5 mA (no flame)
Ignition, Flame & Supervision Specifications
- Ignition Transformer Relay
- DPST contacts, rated 5 A at 125/250 VAC
- Ignition Command Input
- 12 to 50 VDC or 85 to 264 VAC
- Flame Relay Output
- DPDT contacts, rated 5 A at 125/277 VAC and 30 VDC
Actuation, Valve & Motion Control Specifications
- Ignition Modes Supported
- Flame rod only, flame rod with ignition coil, flame rod with ignition transformer
Ignition & Flame‑Related Control
- Ignition Coil Drive
- 4.4 μF capacitor discharged at line frequency via 4 A, 400 V SCR
Measurement & Sensing Characteristics
- Detection Method
- Flame rod sensing via rectified current flow
Environmental Conditions
- Ambient Temperature Range
- 0 to 60 deg C (32 to 140 deg F)
Control, Software & User Interface Specifications
- Signal Display
- 6-digit LED bar graph (1-6) for flame strength
Measurement, Accuracy & Sensing
- Sensitivity Levels
- 4 selectable gain levels via jumper
Installation & Mounting Specifications
- Mounting Types
- 35 mm DIN rail
Electrical Specifications
- Input Power
- 85-132 VAC or 170-264 VAC, 50/60 Hz voltage direct current
- Input Current
- 0.07 A at 115 VAC; 0.035 A at 230 VAC (monitoring only)
- 0.3 A at 115 VAC; 0.15 A at 230 VAC + ignition transformer current (max 5 A) (ignition on) milliampere
- Flame Rod Voltage
- 175 VAC
- Flame Rod Current
- < 0.5 mA (no flame)
Ignition, Flame & Supervision Specifications
- Ignition Transformer Relay
- DPST contacts, rated 5 A at 125/250 VAC
- Ignition Command Input
- 12 to 50 VDC or 85 to 264 VAC
- Flame Relay Output
- DPDT contacts, rated 5 A at 125/277 VAC and 30 VDC
Actuation, Valve & Motion Control Specifications
- Ignition Modes Supported
- Flame rod only, flame rod with ignition coil, flame rod with ignition transformer
Ignition & Flame‑Related Control
- Ignition Coil Drive
- 4.4 μF capacitor discharged at line frequency via 4 A, 400 V SCR
Measurement & Sensing Characteristics
- Detection Method
- Flame rod sensing via rectified current flow
- Ambient Temperature Range : 0 to 60 deg C (32 to 140 deg F)
- Signal Display : 6-digit LED bar graph (1-6) for flame strength
- Sensitivity Levels : 4 selectable gain levels via jumper
- Mounting Types : 35 mm DIN rail
- Input Power : 85-132 VAC or 170-264 VAC, 50/60 Hz voltage direct current
- Input Current : 0.07 A at 115 VAC; 0.035 A at 230 VAC (monitoring only) | 0.3 A at 115 VAC; 0.15 A at 230 VAC + ignition transformer current (max 5 A) (ignition on) milliampere
- Ignition Transformer Relay : DPST contacts, rated 5 A at 125/250 VAC
- Ignition Modes Supported : Flame rod only, flame rod with ignition coil, flame rod with ignition transformer
- Ignition Command Input : 12 to 50 VDC or 85 to 264 VAC
- Ignition Coil Drive : 4.4 μF capacitor discharged at line frequency via 4 A, 400 V SCR
- Flame Rod Voltage : 175 VAC
- Flame Rod Current : < 0.5 mA (no flame)
- Flame Relay Output : DPDT contacts, rated 5 A at 125/277 VAC and 30 VDC
- Detection Method : Flame rod sensing via rectified current flow
