FlueFire
Air Heating Burner with Proven supplemental duct firing.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

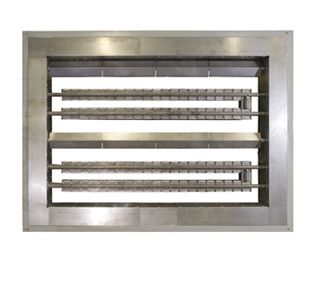

The Eclipse FlueFire burner has become an industry standard for supplemental firing in cogeneration and combined-cycle installations. FlueFire is an in-duct burner which can be located directly in the exhaust gases between the turbine and waste heat boiler. The burner is also suitable for fresh air operation or incineration applications. The FlueFire optimizes the system efficiency as it takes its oxygen requirement from the turbine exhaust gases. The burner can function with inlet temperatures up to 700°C (1300°F) and outlet temperatures up to 1200°C (2200°F). FlueFire is a proven performer in dozens of successful installations around the world.
Features & Benefits:
Features & Benefits:
- Excellent flame stability
- Clean combustion with low NOx emissions
- Flame swirl stabilizes the combustion just in front of the burner
- Creates an intimate mixing of the turbine exhaust gases with the fuel
- Exceptional flame stability
Specifications
Applications & Compatibility
- Applications
- Fresh air heating
- High‑temperature process heating
- Turbine exhaust/waste heat boiler firing
Temperature Control/Measurement
- Temperature Rating
- Downstream: up to 1800 deg F (982 deg C) with 21% O₂ (typical)
- Upstream: up to 1300 deg F (700 deg C)
Control, Safety & Timing Characteristics
- Row/Propagation

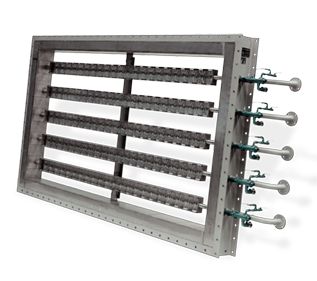

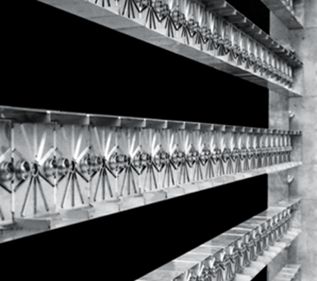

- Modules mounted on common manifold to form rows; optional flame propagation plates for cross‑ignition between rows
Processing & Performance Metrics
- Process Velocity
- FA: 2100 to 2800 ft/min (10 to 14 m/s)
- TEG: 3800 to 5000 ft/min (19 to 25 m/s)
- Module Construction

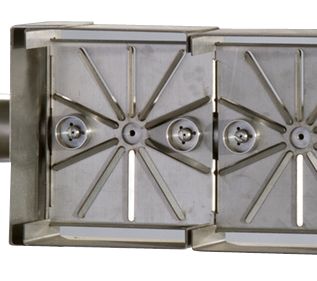

- Each 150 mm module has a perforated stabilization plate producing local swirl; two gas nozzles + one raw gas port
- Minimum Capacity
- 55-95 x 1000 Btu/h (15-25 kW) per 150 mm module (depends on O₂%)
- Frame Construction
- Heavy steel mounting frame with internal insulation (≈8 in ceramic fiber) and heat‑resistant cladding; sliding end for thermal expansion
- Capacity Range
- Up to 1300 x 1000 Btu/h (344 kW) per 150 mm module at 21% O₂
- CO/NOx Emissions
- Emissions depend on process temperature and O₂ level (consult Eclipse)
Air & Combustion Air Specifications
- Process Air Distribution
- ±15% velocity uniformity across the burner required
Pressure Specifications
- Pressure Drop
- 0.3 to 0.5 in wc (75 to 125 Pa)
- Nozzle Gas Pressure
- NG: 169 in wc (421 mbar); Propane: 74 in wc (184 mbar); Butane: 56 in wc (140 mbar)
Combustion, Mixing & Fuel Dynamics
- Oxygen Requirement
- Operational envelope ~11–21% O₂ in process stream; below this, provide external combustion air
Actuation, Valve & Motion Control Specifications
- Ignition System
- Pilot with ignition plug and flame extension tube; UV proves pilot and main flame; pilot interrupted after light‑off
Control, Logic & Functional Behavior
- Functions
- Supplementary firing of turbine exhaust gases (TEG) using residual O₂; also applicable to fresh air (FA) heating with high outlet temperatures
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas, Propane, Butane; low‑calorific gases per specification
Ignition, Flame & Supervision Specifications
- Flame Monitoring
- UV Scanner only
Product Design & Configuration
- Burner Design
- Modular supplementary firing burner
Applications & Compatibility
- Applications
- Fresh air heating
- High‑temperature process heating
- Turbine exhaust/waste heat boiler firing
Temperature Control/Measurement
- Temperature Rating
- Downstream: up to 1800 deg F (982 deg C) with 21% O₂ (typical)
- Upstream: up to 1300 deg F (700 deg C)
Control, Safety & Timing Characteristics
- Row/Propagation
- Modules mounted on common manifold to form rows; optional flame propagation plates for cross‑ignition between rows
Processing & Performance Metrics
- Process Velocity
- FA: 2100 to 2800 ft/min (10 to 14 m/s)
- TEG: 3800 to 5000 ft/min (19 to 25 m/s)
- Module Construction
- Each 150 mm module has a perforated stabilization plate producing local swirl; two gas nozzles + one raw gas port
- Minimum Capacity
- 55-95 x 1000 Btu/h (15-25 kW) per 150 mm module (depends on O₂%)
- Frame Construction
- Heavy steel mounting frame with internal insulation (≈8 in ceramic fiber) and heat‑resistant cladding; sliding end for thermal expansion
- Capacity Range
- Up to 1300 x 1000 Btu/h (344 kW) per 150 mm module at 21% O₂
- CO/NOx Emissions
- Emissions depend on process temperature and O₂ level (consult Eclipse)
Air & Combustion Air Specifications
- Process Air Distribution
- ±15% velocity uniformity across the burner required
Pressure Specifications
- Pressure Drop
- 0.3 to 0.5 in wc (75 to 125 Pa)
- Nozzle Gas Pressure
- NG: 169 in wc (421 mbar); Propane: 74 in wc (184 mbar); Butane: 56 in wc (140 mbar)
Combustion, Mixing & Fuel Dynamics
- Oxygen Requirement
- Operational envelope ~11–21% O₂ in process stream; below this, provide external combustion air
Actuation, Valve & Motion Control Specifications
- Ignition System
- Pilot with ignition plug and flame extension tube; UV proves pilot and main flame; pilot interrupted after light‑off
Control, Logic & Functional Behavior
- Functions
- Supplementary firing of turbine exhaust gases (TEG) using residual O₂; also applicable to fresh air (FA) heating with high outlet temperatures
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas, Propane, Butane; low‑calorific gases per specification
Ignition, Flame & Supervision Specifications
- Flame Monitoring
- UV Scanner only
Product Design & Configuration
- Burner Design
- Modular supplementary firing burner
- Applications : Fresh air heating|High‑temperature process heating|Turbine exhaust/waste heat boiler firing
- Temperature Rating : Downstream: up to 1800 deg F (982 deg C) with 21% O₂ (typical)|Upstream: up to 1300 deg F (700 deg C)
- Row/Propagation : Modules mounted on common manifold to form rows; optional flame propagation plates for cross‑ignition between rows
- Process Velocity : FA: 2100 to 2800 ft/min (10 to 14 m/s)|TEG: 3800 to 5000 ft/min (19 to 25 m/s)
- Process Air Distribution : ±15% velocity uniformity across the burner required
- Pressure Drop : 0.3 to 0.5 in wc (75 to 125 Pa)
- Oxygen Requirement : Operational envelope ~11–21% O₂ in process stream; below this, provide external combustion air
- Nozzle Gas Pressure : NG: 169 in wc (421 mbar); Propane: 74 in wc (184 mbar); Butane: 56 in wc (140 mbar)
- Module Construction : Each 150 mm module has a perforated stabilization plate producing local swirl; two gas nozzles + one raw gas port
- Minimum Capacity : 55-95 x 1000 Btu/h (15-25 kW) per 150 mm module (depends on O₂%)
- Ignition System : Pilot with ignition plug and flame extension tube; UV proves pilot and main flame; pilot interrupted after light‑off
- Functions : Supplementary firing of turbine exhaust gases (TEG) using residual O₂; also applicable to fresh air (FA) heating with high outlet temperatures
- Fuel Type : Natural Gas, Propane, Butane; low‑calorific gases per specification
- Frame Construction : Heavy steel mounting frame with internal insulation (≈8 in ceramic fiber) and heat‑resistant cladding; sliding end for thermal expansion
- Flame Monitoring : UV Scanner only
- Capacity Range : Up to 1300 x 1000 Btu/h (344 kW) per 150 mm module at 21% O₂
- CO/NOx Emissions : Emissions depend on process temperature and O₂ level (consult Eclipse)
- Burner Design : Modular supplementary firing burner
