Orifice Meters OMG

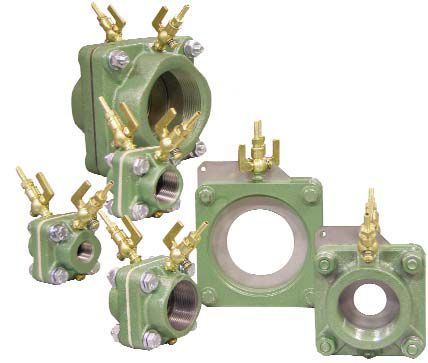

OMG orifice meters offer a simple, economical means to measure air and gas flow on industrial combustion applications. They are designed for use in the most demanding and harsh installations, and are avaialable in threaded and welded connections.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The OMG comes in an extensive variety of sizes for metering an individual burner or an entire system. OMG can be installed at each burner’s air and gas connection and in the main air header or gas manifold for the furnace. The rugged construction of theOMG series orifice meters allow pressure up to 25 psig (172kPa) for the 3/8" to4" size (DN 10 to 100). The 6" through 28" (DN 150 to 700) sizes are suitable for 10 psig (69 kPa) service. All OMG components are suitable for temperatures up to 250ºF (121ºC).
Features & Benefits:
Features & Benefits:
- Rugged industrial construction provides for economical flow metering with highly accurate results
- Available in weld-in or threaded (NPT or metric) designs
- Simple orifice plate replacement with only one bolt
- Variety of orifice bore sizes available and conveniently marked on the orifice plate
- Designed in accordance with ASME flow measurement standards
- Easy to use and install
