Oil Filters OF
Edge Plate Type Oil Filters
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Oil filters are necessary in combustion systems to provide adequate filtration of particles from fuel oils. The filters in this series are for single-burner applications, or in supply headers for multiple burner applications that require fine filtration.
Features & Benefits:
Features & Benefits:

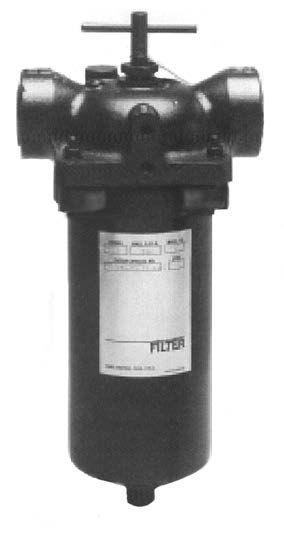

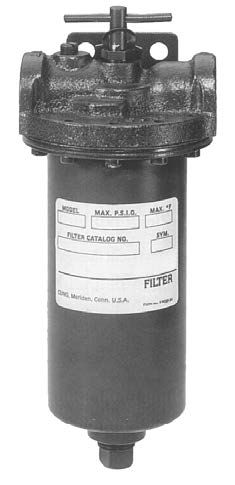

- The DDS, G, and EG series oil filters utilize stacked metal edge plates to trap dirt and other foreign material present in fuel oil on fuel burning installations where a continuous flow of clean fuel oil is essential. This helps avoid the clogging of pumps, oil lines, valves, and burners, reducing burner shut downs
- The filters are cleanable without interruption of flow by a single turn of the cleaning handle
- A drain is provided for removal of sludge
- Maximum operating pressures are: DDS series, 250 psi (1724 kPa) @ 200°F (93°C); G series, 125 psi (862 kPa) @ 200°F (93°C); EG series, 200 psi (1379 kPa) @ 200°F (93°C)
Specifications
Mechanical Design, Layout & Construction Options
- Spacing
- Edge Plate - 0.003 to 0.008 in
Pressure Specifications
- Bypass Pressure
- Paper Element - 25 psi
Filtration & Media Handling
- Filter Type
- Edge Plate, Paper Element, Wool Felt
Dimensions & Size Specifications
- Filter Size
- Paper Element/Wool Felt - 0.0004 in
Combustion, Fuel & Mixing Sub‑Systems
- Oil Flow
- Edge Plate - 2.6 to 30 gpm at 100 SSU
- Paper Element - 5 gpm at 150 SSU
- Wool Felt - 0.17, 0.42 gpm at 40 SSU
Mechanical Design, Layout & Construction Options
- Spacing
- Edge Plate - 0.003 to 0.008 in
Pressure Specifications
- Bypass Pressure
- Paper Element - 25 psi
Filtration & Media Handling
- Filter Type
- Edge Plate, Paper Element, Wool Felt
Dimensions & Size Specifications
- Filter Size
- Paper Element/Wool Felt - 0.0004 in
Combustion, Fuel & Mixing Sub‑Systems
- Oil Flow
- Edge Plate - 2.6 to 30 gpm at 100 SSU
- Paper Element - 5 gpm at 150 SSU
- Wool Felt - 0.17, 0.42 gpm at 40 SSU
- Spacing : Edge Plate - 0.003 to 0.008 in
- Bypass Pressure : Paper Element - 25 psi
- Filter Type : Edge Plate, Paper Element, Wool Felt
- Filter Size : Paper Element/Wool Felt - 0.0004 in
- Oil Flow : Edge Plate - 2.6 to 30 gpm at 100 SSU|Paper Element - 5 gpm at 150 SSU|Wool Felt - 0.17, 0.42 gpm at 40 SSU
