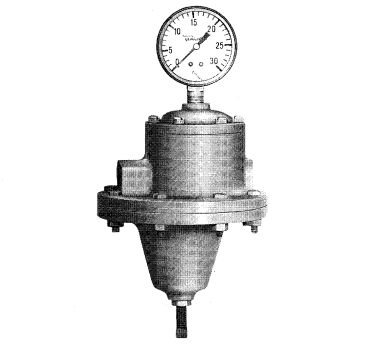

Oil Pressure Regulators PRO
Oil Pressure Regulators designed to function as a rugged, self-contained pressure reducing valve.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The self-contained design of the PRO eliminates the need for external actuators or control lines. The PRO was specifically engineered for use on oil supply systems where it is desired to automatically reduce a high oil pressure to a lower oil pressure and maintain that lower pressure within close limits.
Features & Benefits:
Features & Benefits:
- Inlet pressure to 50 PSIG
- Outlet pressure 1-25 PSIG
- Handles No. 2 to No. 6 fuel oil
- Self-contained
- Rugged construction
Specifications
Dimensions & Size Specifications
- Pipe Size
- 1/2 in NPT
Pressure Specifications
- Outlet Pressure Range
- 1 to 25 psig
- Maximum Discharge Pressure
- 10 to 25 psig
Processing & Performance Metrics
- Maximum Capacity
- 50 to 150 gph
Dimensions & Size Specifications
- Pipe Size
- 1/2 in NPT
Pressure Specifications
- Outlet Pressure Range
- 1 to 25 psig
- Maximum Discharge Pressure
- 10 to 25 psig
Processing & Performance Metrics
- Maximum Capacity
- 50 to 150 gph
- Pipe Size : 1/2 in NPT
- Outlet Pressure Range : 1 to 25 psig
- Maximum Discharge Pressure : 10 to 25 psig
- Maximum Capacity : 50 to 150 gph
