Actuators IC

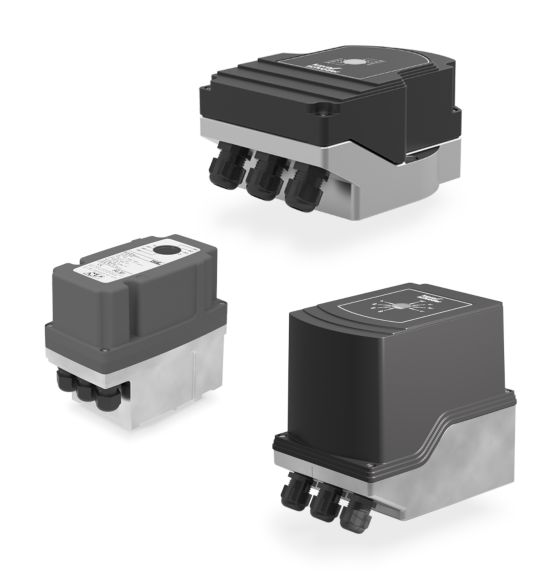

Reversible gear motor to transmit rotary movements between 0 and 90°, for actuation of gas and air valves.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Reversible gear motor to transmit rotary movements between 0 and 90°, for actuation of gas and air valves
Features & Benefits:
Features & Benefits:
- IC 20, IC 30, IC 50 with voltage-free limit switches, Automatic/Manual mode changeover, position feedback and externally readable position indicator
- IC 50 also with selectable direction of rotation
- IC 40 for complex applications with programmable functions for flexible adjustment to the process, with statistics and fault history to support service personnel
- Running time:
- IC 20: 7.5 to 60 s,
- IC 30: 30 and 60 s,
- IC 50: 3.7 to 60 s
- IC 40: programmable
- Mains voltage:
- IC 20: 120 to 230 V AC,
- IC 30: 24 V DC,
- IC 40: 100 to 230 V AC,
- IC 50: 24 to 230 V AC
- Torque:
- IC 20, IC 40: 2.5 (at 50 Hz) and 3 Nm,
- IC 30: 3 Nm,
- IC 50: 3 to 30 Nm,
- Controlled by
- IC 30: three-point step
- IC 20, IC 50: three-point step or continuous signal,
- IC 40: three-point step, two-point, PLC or continuous signal
Specifications
Environmental Conditions
- Ambient Temperature Range
- IC 20/IC 40/IC 50: -20 to +60 deg C
- IC 30: -15…+60 deg C
- Enclosure Rating
- IP64/IP65
Software, Configuration & Cyber
- Software Configuration
- IC 40 - BCSoft programmable
Actuation, Valve & Motion Control Specifications
- Position Indicator
- External position indicator, readable from outside
- Holding Torque
- High holding torque; actuator holds position when de‑energized
- Actuator Type
- Electric rotary actuator
Installation & Mounting Specifications
- Mounting Position
- Vertical/horizontal
Processing & Performance Metrics
- Adjustment Angle
- 0 to 90 deg , adjustable
- Duty Cycle
- 1
Product Overview & Classification
- Product Family
- Actuators IC (IC 20, IC 30, IC 40, IC 50)
Control, Logic & Functional Behavior
- Control Modes
- IC 20/IC 30/IC 50 - 3‑point step
- IC 40 - 2‑point, 3‑point, staged, analogue
- Manual Mode
- Switchable between Automatic and Manual mode
Electrical Specifications
- Power Supply
- IC 20: 120/230 VAC, IC 30: 24 VDC
- IC 40: 100-230 VAC Auto
- IC 50: 24 VAC, 120 VAC, 230 VAC
Applications & Compatibility
- Applications
- IC 20/IC30/IC 40 - Precise rotary actuation 0 to 90 deg for controlling gas and air flow rates in combustion systems, IC50 - High‑torque gas & air control
Mechanical Design & Adjustment Characteristics
- Motion Type
- Electric rotary
Standards & Certifications
- Approvals
- EU (LVD, EMC, RoHS), ANSI/CSA (model‑dependent), Eurasian Customs Union, UL Listed
Environmental Conditions
- Ambient Temperature Range
- IC 20/IC 40/IC 50: -20 to +60 deg C
- IC 30: -15…+60 deg C
- Enclosure Rating
- IP64/IP65
Software, Configuration & Cyber
- Software Configuration
- IC 40 - BCSoft programmable
Actuation, Valve & Motion Control Specifications
- Position Indicator
- External position indicator, readable from outside
- Holding Torque
- High holding torque; actuator holds position when de‑energized
- Actuator Type
- Electric rotary actuator
Installation & Mounting Specifications
- Mounting Position
- Vertical/horizontal
Processing & Performance Metrics
- Adjustment Angle
- 0 to 90 deg , adjustable
- Duty Cycle
- 1
Product Overview & Classification
- Product Family
- Actuators IC (IC 20, IC 30, IC 40, IC 50)
Control, Logic & Functional Behavior
- Control Modes
- IC 20/IC 30/IC 50 - 3‑point step
- IC 40 - 2‑point, 3‑point, staged, analogue
- Manual Mode
- Switchable between Automatic and Manual mode
Electrical Specifications
- Power Supply
- IC 20: 120/230 VAC, IC 30: 24 VDC
- IC 40: 100-230 VAC Auto
- IC 50: 24 VAC, 120 VAC, 230 VAC
Applications & Compatibility
- Applications
- IC 20/IC30/IC 40 - Precise rotary actuation 0 to 90 deg for controlling gas and air flow rates in combustion systems, IC50 - High‑torque gas & air control
Mechanical Design & Adjustment Characteristics
- Motion Type
- Electric rotary
Standards & Certifications
- Approvals
- EU (LVD, EMC, RoHS), ANSI/CSA (model‑dependent), Eurasian Customs Union, UL Listed
- Ambient Temperature Range : IC 20/IC 40/IC 50: -20 to +60 deg C|IC 30: -15…+60 deg C
- Software Configuration : IC 40 - BCSoft programmable
- Position Indicator : External position indicator, readable from outside
- Mounting Position : Vertical/horizontal
- Enclosure Rating : IP64/IP65
- Adjustment Angle : 0 to 90 deg , adjustable
- Product Family : Actuators IC (IC 20, IC 30, IC 40, IC 50)
- Holding Torque : High holding torque; actuator holds position when de‑energized
- Control Modes : IC 20/IC 30/IC 50 - 3‑point step | IC 40 - 2‑point, 3‑point, staged, analogue
- Actuator Type : Electric rotary actuator
- Power Supply : IC 20: 120/230 VAC, IC 30: 24 VDC|IC 40: 100-230 VAC Auto|IC 50: 24 VAC, 120 VAC, 230 VAC
- Applications : IC 20/IC30/IC 40 - Precise rotary actuation 0 to 90 deg for controlling gas and air flow rates in combustion systems, IC50 - High‑torque gas & air control
- Motion Type : Electric rotary
- Manual Mode : Switchable between Automatic and Manual mode
- Duty Cycle : 1
- Approvals : EU (LVD, EMC, RoHS), ANSI/CSA (model‑dependent), Eurasian Customs Union, UL Listed
