A versatile, packaged actuator controlled Butterfly Valve. It features the Eclipse BV paired with the Kromschröder IC actuators as well as offers options for other Honeywell actuators.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

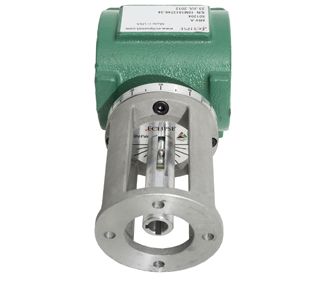

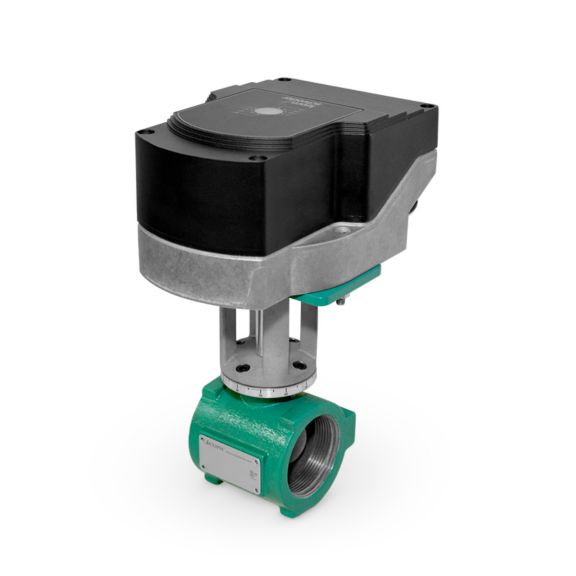

The Eclipse Packaged Butterfly Valve incorporates a Kromschröder IC Series Actuator mounted to a standard Eclipse butterfly valve.
- The new innovative support provides a robust universal solution with an easy to see position indicator
- This package is the perfect solution for industrial burner control
- Eclipse simplifies selection and ordering in this single source component purchase
- Equipment sizing, mounting, and setup are all made easier
Specifications
Dimensions & Size Specifications
- Sizes
- 1/2 to 4 in
Environmental Conditions
- Environmental Rating
- IP65/NEMA 3
- Enclosure Rating
- IP65/NEMA 3
Actuation, Valve & Motion Control Specifications
- Disc Shutter Options
- 75 deg beveled or 360 deg non‑beveled
- Valve Type
- Butterfly valve with selectable disc shutter angle
- Port Types
- Full Port, Reduced Port, or High‑Drop Port (size dependent)
Temperature Control/Measurement
- Temperature Rating
- -20 to +60 deg C (0 to 140 deg F)
Connections & Interfaces
- Connection Type
- NPT or Rc (BSP)
Overview
- Product Type
- BV‑Pak/BV‑Pak‑II Packaged Butterfly Valve and Actuator
Electrical Specifications
- Power Supply
- 120 VAC or 230 VAC, +10 %/-15 %, 50/60 Hz
- 24 VAC/DC (BV‑Pak‑II)
Actuation, Control & Motion Characteristics
- Drive Signal
- Analog: 0-20 mA, 4-20 mA, 0-10 V, potentiometer
- Digital: 2/3/4‑position step
Applications & Compatibility
- Applications
- Combustion air control, fuel‑gas control, industrial burner systems with modulating control
Dimensions & Size Specifications
- Sizes
- 1/2 to 4 in
Environmental Conditions
- Environmental Rating
- IP65/NEMA 3
- Enclosure Rating
- IP65/NEMA 3
Actuation, Valve & Motion Control Specifications
- Disc Shutter Options
- 75 deg beveled or 360 deg non‑beveled
- Valve Type
- Butterfly valve with selectable disc shutter angle
- Port Types
- Full Port, Reduced Port, or High‑Drop Port (size dependent)
Temperature Control/Measurement
- Temperature Rating
- -20 to +60 deg C (0 to 140 deg F)
Connections & Interfaces
- Connection Type
- NPT or Rc (BSP)
Overview
- Product Type
- BV‑Pak/BV‑Pak‑II Packaged Butterfly Valve and Actuator
Electrical Specifications
- Power Supply
- 120 VAC or 230 VAC, +10 %/-15 %, 50/60 Hz
- 24 VAC/DC (BV‑Pak‑II)
Actuation, Control & Motion Characteristics
- Drive Signal
- Analog: 0-20 mA, 4-20 mA, 0-10 V, potentiometer
- Digital: 2/3/4‑position step
Applications & Compatibility
- Applications
- Combustion air control, fuel‑gas control, industrial burner systems with modulating control
- Sizes : 1/2 to 4 in
- Environmental Rating : IP65/NEMA 3
- Disc Shutter Options : 75 deg beveled or 360 deg non‑beveled
- Temperature Rating : -20 to +60 deg C (0 to 140 deg F)
- Enclosure Rating : IP65/NEMA 3
- Connection Type : NPT or Rc (BSP)
- Product Type : BV‑Pak/BV‑Pak‑II Packaged Butterfly Valve and Actuator
- Power Supply : 120 VAC or 230 VAC, +10 %/-15 %, 50/60 Hz|24 VAC/DC (BV‑Pak‑II)
- Drive Signal : Analog: 0-20 mA, 4-20 mA, 0-10 V, potentiometer|Digital: 2/3/4‑position step
- Applications : Combustion air control, fuel‑gas control, industrial burner systems with modulating control
- Valve Type : Butterfly valve with selectable disc shutter angle
- Port Types : Full Port, Reduced Port, or High‑Drop Port (size dependent)
