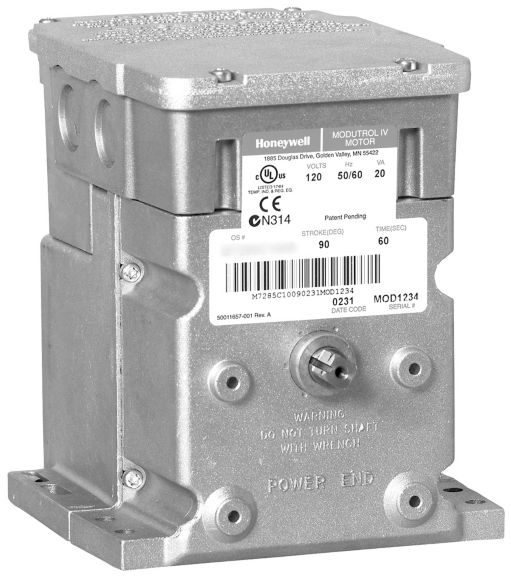

Firing Rate Motors M9484D, E, F; M9494D, F Modutrol IV Motors
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Reversing, proportional motors used to drive burner firing rate valves, dampers or auxiliary equipment. Replaces M941A, C, D motors.
Features & Benefits:
Features & Benefits:
- Designed for flame safeguard applications in commercial/industrial oil or gas burner system
- Vibration resistant electronic drive circuit
- Regulated by three-wire proportional controller
- Stroke is field-adjustable to 90 or 160 degrees
Specifications
Environmental Conditions
- Ambient Temperature Range
- -40 to +66 deg C (-40 to +150 deg F at 25 % duty cycle)
- Enclosure Rating
- Wiring box provides NEMA 3 weather protection
Actuation, Valve & Motion Control Specifications
- Torque Rating
- High‑torque (150 lb‑in) and extra‑high torque (300 lb‑in) depending on model suffix
- Stroke Angle
- Fixed 90 deg or 160 deg , or field‑adjustable 90 to 160 deg depending on suffix
- Shaft Type
- Single‑ended or dual‑ended shaft (model dependent)
Electrical Specifications
- Supply Voltage
- 24 VAC (external transformer) or 120/208/240 VAC, 50/60 Hz with internal transformer
Control, Safety & Timing Characteristics
- Standard Timing
- 15 s (90 deg )/30 s (160 deg ) or extended timing options (2 min/4 min models)
Product Overview & Classification
- Product Name
- Modutrol IV Motors - M9484D, M9484E, M9484F, M9494D, M9494F
Material Specifications
- Housing Material
- Die‑Cast Aluminum Housing
Dimensions & Size Specifications
- Crankshaft Size
- 3/8 in (9.5 mm) square shaft
Control, Logic & Functional Behavior
- Control Type
- Series 90 proportional control
Standards & Certifications
- Approvals
- UL Listed (E4436), CSA Certified (LR1620)
Applications & Compatibility
- Applications
- Combustion air dampers, gas valves, butterfly valves, HVAC and industrial process control
- Reversing, proportional motors for operating valves or dampers in Series 90 electric modulating circuits
Environmental Conditions
- Ambient Temperature Range
- -40 to +66 deg C (-40 to +150 deg F at 25 % duty cycle)
- Enclosure Rating
- Wiring box provides NEMA 3 weather protection
Actuation, Valve & Motion Control Specifications
- Torque Rating
- High‑torque (150 lb‑in) and extra‑high torque (300 lb‑in) depending on model suffix
- Stroke Angle
- Fixed 90 deg or 160 deg , or field‑adjustable 90 to 160 deg depending on suffix
- Shaft Type
- Single‑ended or dual‑ended shaft (model dependent)
Electrical Specifications
- Supply Voltage
- 24 VAC (external transformer) or 120/208/240 VAC, 50/60 Hz with internal transformer
Control, Safety & Timing Characteristics
- Standard Timing
- 15 s (90 deg )/30 s (160 deg ) or extended timing options (2 min/4 min models)
Product Overview & Classification
- Product Name
- Modutrol IV Motors - M9484D, M9484E, M9484F, M9494D, M9494F
Material Specifications
- Housing Material
- Die‑Cast Aluminum Housing
Dimensions & Size Specifications
- Crankshaft Size
- 3/8 in (9.5 mm) square shaft
Control, Logic & Functional Behavior
- Control Type
- Series 90 proportional control
Standards & Certifications
- Approvals
- UL Listed (E4436), CSA Certified (LR1620)
Applications & Compatibility
- Applications
- Combustion air dampers, gas valves, butterfly valves, HVAC and industrial process control
- Reversing, proportional motors for operating valves or dampers in Series 90 electric modulating circuits
- Ambient Temperature Range : -40 to +66 deg C (-40 to +150 deg F at 25 % duty cycle)
- Torque Rating : High‑torque (150 lb‑in) and extra‑high torque (300 lb‑in) depending on model suffix
- Supply Voltage : 24 VAC (external transformer) or 120/208/240 VAC, 50/60 Hz with internal transformer
- Stroke Angle : Fixed 90 deg or 160 deg , or field‑adjustable 90 to 160 deg depending on suffix
- Standard Timing : 15 s (90 deg )/30 s (160 deg ) or extended timing options (2 min/4 min models)
- Shaft Type : Single‑ended or dual‑ended shaft (model dependent)
- Product Name : Modutrol IV Motors - M9484D, M9484E, M9484F, M9494D, M9494F
- Housing Material : Die‑Cast Aluminum Housing
- Enclosure Rating : Wiring box provides NEMA 3 weather protection
- Crankshaft Size : 3/8 in (9.5 mm) square shaft
- Control Type : Series 90 proportional control
- Approvals : UL Listed (E4436), CSA Certified (LR1620)
- Applications : Combustion air dampers, gas valves, butterfly valves, HVAC and industrial process control|Reversing, proportional motors for operating valves or dampers in Series 90 electric modulating circuits
