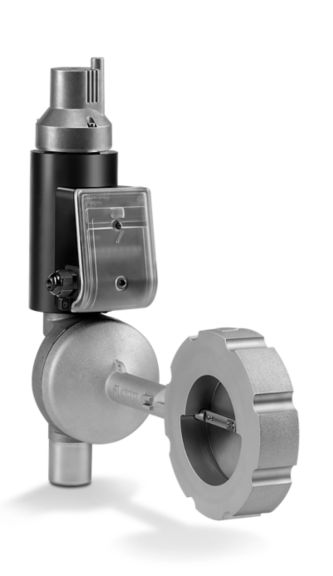

Solenoid-operated butterfly valves for air MB 7/BVHM
Solenoid-operated butterfly valves for air MB 7/BVHM.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Solenoid actuators MB 7 and butterfly valves BVHM for staged control of industrial burners in cold or hot air
Features & Benefits:
Features & Benefits:
- Operating mode up to 450°C. DN: 40 to 100
- For fitting between two flanges
- pu: max 150 mbar
- With spring-loaded valve disc and position indicator
- MB 7N: quick opening, quick closing, MB 7R: slow opening, slow closing, for High/Low control
- MB 7L: slow opening, quick closing, for On/Off control
- Mains voltage: 24 V DC, 120 V AC or 220/240 V AC
- Electrical connection: terminals or standard plug with socket
Specifications
Processing & Performance Metrics
- Adjustable Flow Range
- Factory setting: Qmin = 0 deg , Qmax = 90 deg ; adjustable via flow adjustment unit
Actuation, Valve & Motion Control Specifications
- Valve Type
- Butterfly valve with stop bar (BVHM..A)
- Opening/Closing Behavior
- MB 7L: slow open/quick close
- MB 7N: quick open/quick close
- MB 7R: slow open/slow close
Material Specifications
- Valve Disc Material
- Stainless Steel
- Housing Material
- Ductile cast iron (GGG)
Electrical Specifications
- Supply Voltage
- 230 VAC, 120 VAC (50/60 Hz), or 24 VDC
- Maintenance Interval
- Low‑maintenance; annual functional check recommended
- Electrical Power
- 230 VAC: 100 W; 120 VAC: 108 W; 24 VDC: 85 W
Fuel, Gas & Media Specifications
- Suitable Media
- Air and flue gas (clean, dry, no condensate)
Dimensions & Size Specifications
- Size Range
- DN 40, 50, 65, 80, 100
Overview
- Product Type
- Solenoid‑operated Butterfly Valve for Air - BVHM with MB 7 Solenoid Actuator
Control, Logic & Functional Behavior
- Operation Type
- Intermittent/cyclic operation (On/Off) Millimeter-PRD
Operating/Process Temperature Ranges
- Medium Temperature
- -20 to +450 deg C (-4 to +840 deg F)
Pressure Specifications
- Maximum Inlet Pressure
- 150 mbar (2.18 psig) millibar
- Maximum Differential Pressure
- 150 mbar (2.18 psig) pounds per square inch
Installation & Mounting Specifications
- Installation Orientation
- Solenoid actuator upright vertical or tilted to horizontal; not upside‑down
Ignition, Flame & Supervision Specifications
- Flow Direction
- Installation with flow from bottom to top recommended
Safety, Protection & Reliability
- Fail‑Safe Position
- Butterfly valve closes when de‑energized
Environmental Conditions
- Enclosure Rating
- IP65 (MB 7)
- Ambient Temperature Range
- -20 to +60 deg C (-4 to +140 deg F) for BVHM and MB 7
Connections & Interfaces
- Connection Type
- For fitting between EN or ANSI flanges
Standards & Certifications
- Approvals
- EN 13611; ANSI/UL 429; CSA C22.2 No. 139; CE (LVD, EMC, RoHS)
Processing & Performance Metrics
- Adjustable Flow Range
- Factory setting: Qmin = 0 deg , Qmax = 90 deg ; adjustable via flow adjustment unit
Actuation, Valve & Motion Control Specifications
- Valve Type
- Butterfly valve with stop bar (BVHM..A)
- Opening/Closing Behavior
- MB 7L: slow open/quick close
- MB 7N: quick open/quick close
- MB 7R: slow open/slow close
Material Specifications
- Valve Disc Material
- Stainless Steel
- Housing Material
- Ductile cast iron (GGG)
Electrical Specifications
- Supply Voltage
- 230 VAC, 120 VAC (50/60 Hz), or 24 VDC
- Maintenance Interval
- Low‑maintenance; annual functional check recommended
- Electrical Power
- 230 VAC: 100 W; 120 VAC: 108 W; 24 VDC: 85 W
Fuel, Gas & Media Specifications
- Suitable Media
- Air and flue gas (clean, dry, no condensate)
Dimensions & Size Specifications
- Size Range
- DN 40, 50, 65, 80, 100
Overview
- Product Type
- Solenoid‑operated Butterfly Valve for Air - BVHM with MB 7 Solenoid Actuator
Control, Logic & Functional Behavior
- Operation Type
- Intermittent/cyclic operation (On/Off) Millimeter-PRD
Operating/Process Temperature Ranges
- Medium Temperature
- -20 to +450 deg C (-4 to +840 deg F)
Pressure Specifications
- Maximum Inlet Pressure
- 150 mbar (2.18 psig) millibar
- Maximum Differential Pressure
- 150 mbar (2.18 psig) pounds per square inch
Installation & Mounting Specifications
- Installation Orientation
- Solenoid actuator upright vertical or tilted to horizontal; not upside‑down
Ignition, Flame & Supervision Specifications
- Flow Direction
- Installation with flow from bottom to top recommended
Safety, Protection & Reliability
- Fail‑Safe Position
- Butterfly valve closes when de‑energized
Environmental Conditions
- Enclosure Rating
- IP65 (MB 7)
- Ambient Temperature Range
- -20 to +60 deg C (-4 to +140 deg F) for BVHM and MB 7
Connections & Interfaces
- Connection Type
- For fitting between EN or ANSI flanges
Standards & Certifications
- Approvals
- EN 13611; ANSI/UL 429; CSA C22.2 No. 139; CE (LVD, EMC, RoHS)
- Adjustable Flow Range : Factory setting: Qmin = 0 deg , Qmax = 90 deg ; adjustable via flow adjustment unit
- Valve Type : Butterfly valve with stop bar (BVHM..A)
- Valve Disc Material : Stainless Steel
- Supply Voltage : 230 VAC, 120 VAC (50/60 Hz), or 24 VDC
- Suitable Media : Air and flue gas (clean, dry, no condensate)
- Size Range : DN 40, 50, 65, 80, 100
- Product Type : Solenoid‑operated Butterfly Valve for Air - BVHM with MB 7 Solenoid Actuator
- Operation Type : Intermittent/cyclic operation (On/Off) Millimeter-PRD
- Opening/Closing Behavior : MB 7L: slow open/quick close|MB 7N: quick open/quick close|MB 7R: slow open/slow close
- Medium Temperature : -20 to +450 deg C (-4 to +840 deg F)
- Maximum Inlet Pressure : 150 mbar (2.18 psig) millibar
- Maximum Differential Pressure : 150 mbar (2.18 psig) pounds per square inch
- Maintenance Interval : Low‑maintenance; annual functional check recommended
- Installation Orientation : Solenoid actuator upright vertical or tilted to horizontal; not upside‑down
- Housing Material : Ductile cast iron (GGG)
- Flow Direction : Installation with flow from bottom to top recommended
- Fail‑Safe Position : Butterfly valve closes when de‑energized
- Enclosure Rating : IP65 (MB 7)
- Electrical Power : 230 VAC: 100 W; 120 VAC: 108 W; 24 VDC: 85 W
- Connection Type : For fitting between EN or ANSI flanges
- Approvals : EN 13611; ANSI/UL 429; CSA C22.2 No. 139; CE (LVD, EMC, RoHS)
- Ambient Temperature Range : -20 to +60 deg C (-4 to +140 deg F) for BVHM and MB 7
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
KS74923034
MB 7NW3
KS74923034
MB 7NW3
KS74923035
ACT,SOLND, BVHM,MB 7NW6
KS74923035
ACT,SOLND, BVHM,MB 7NW6
KS74923036
ACT,SOLND,MB 7NQ3,120VAC,50/60HZ, DN40 D
KS74923036
ACT,SOLND,MB 7NQ3,120VAC,50/60HZ, DN40 D
KS74923037
ACT,SOLND, BVHM,MB 7NQ6
KS74923037
ACT,SOLND, BVHM,MB 7NQ6
KS74923038
ACT,SOLND, BVHM,MB 7NK3
KS74923038
ACT,SOLND, BVHM,MB 7NK3
KS74923039
ACT,SOLND, BVHM,MB 7NK6
KS74923039
ACT,SOLND, BVHM,MB 7NK6
KS74923040
MB 7RW3
KS74923040
MB 7RW3
KS74923041
ACT,SOLND, BVHM,MB 7RW6
KS74923041
ACT,SOLND, BVHM,MB 7RW6
KS74923042
ACT,SOLND, BVHM,MB 7RQ3
KS74923042
ACT,SOLND, BVHM,MB 7RQ3
KS74923043
ACT,SOLND, BVHM,MB 7RQ6
KS74923043
ACT,SOLND, BVHM,MB 7RQ6
