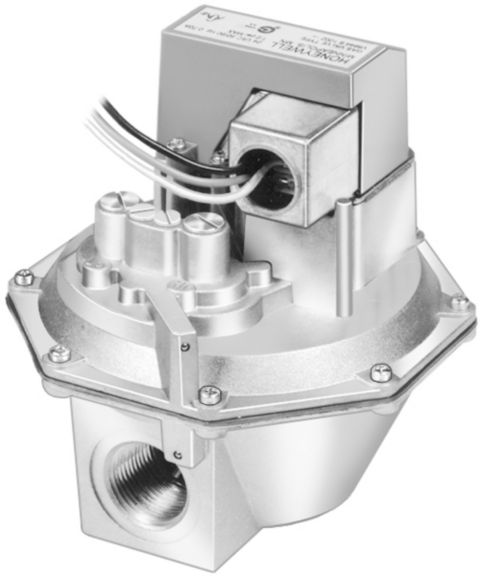

V4944B, L, N/8944B, C, L, N Two-stage pressure regulating gas valves
V4944B, L, N/8944B, C, L, N are Two-stage Pressure Regulating Gas Valves. These valves are used on boilers, unit heaters, duct furnaces, makeup air and rooftop heaters.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Designed for replacement for V4844/V8844 Gas Valves. Suitable for use on atmospheric boilers, commercial water heaters, and rooftop heaters.
Features & Benefits:
Features & Benefits:
- Designed for replacement for V4844/V8844 Gas Valves
- Suitable for use on atmospheric boilers, commercial water heaters, and rooftop heaters
- V4944/V8944B, C, L, N models are solenoid-operated diaphragm valves that combine the functions of safety shutoff and pressure regulation in a single unit
- V4944/V8944B, N are for use with natural gas
- V4944/V8944C, L are for use with LP gas
- Valve body of die-cast aluminum with a straight-through pattern
- V4944 are used with line voltage, dual-stage controllers; V8944 are used with 24 Vac dual-stage thermostats or controllers
- Valve closes on power failure; recommended for final shutoff service
- Bleed Tapping: Two 5/16-24 UNF
- Pilot Tapping: 1/8-27 NPT
- Body Pattern: Straight-through, non-offset
- Valve Closing Time: 2 sec max
- Mounting: Upright (horizontal)
- Materials: Body – Aluminum
- Voltage: V4944-120 Vac; V8944-24 Vac
- Frequency: 60 Hz
- Power Consumption: V4944-9 VA max; V8944-12.4 VA max
- Electrical Connections: 1/4 in. (6 mm) spade terminals (quick connects), leadwires and cover for electrical conduit connection provided.
- Operating Temperature Range: -40°F to +150°F (-40°C to +66°C)
- Approvals, Underwriters Laboratories Inc.: File No. MH1639, Guide No. YIOZ (60 Hz only)
- Approvals, CSA: Certificate No. 158158-1042930, Guide No. 3302-01, 81 (Z21.21, Z21.78)
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.4 kPa
- Current Ratings: V4944-0.077 max amps at rated Vac/Hz; V8944-0.516 max amps at rated Vac/Hz
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
V4944B1018/U
1" VALVE-REPLACMT FOR V4844B1050
V4944B1018/U
1" VALVE-REPLACMT FOR V4844B1050
V4944B1026/U
1-1/4" VALVE, 54" LEADWIRES
V4944B1026/U
1-1/4" VALVE, 54" LEADWIRES
V4944B1034/U
1-1/2",54"LEADWIRES.
V4944B1034/U
1-1/2",54"LEADWIRES.
V4944B1042/U
2"
V4944B1042/U
2"
V4944B1059/U
1" GAS VALVE
V4944B1059/U
1" GAS VALVE
V4944B1075/U
1" VALVE-NPT WITH 1.4 - 4.2" WC LOW FI
V4944B1075/U
1" VALVE-NPT WITH 1.4 - 4.2" WC LOW FI
V4944B1083/U
1-1/4" VALVE-NPT WITH 1.4 - 4.2" WC LO
V4944B1083/U
1-1/4" VALVE-NPT WITH 1.4 - 4.2" WC LO
V4944B1091/U
1-1/2" VALVE-NPT WITH 1.4 - 4.2" WC LO
V4944B1091/U
1-1/2" VALVE-NPT WITH 1.4 - 4.2" WC LO
V4944B1109/U
1" GAS VALVE
V4944B1109/U
1" GAS VALVE
V4944B1125/U
1-1/4" GAS VALVE
V4944B1125/U
1-1/4" GAS VALVE
