Medium Pressure Regulators up to PN16 (ANSI 150)

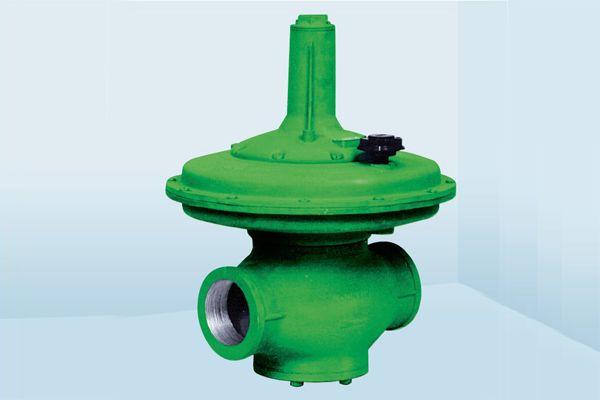

HON 226 SD

HON 226 SD gas pressure regulator helps control gas flow in offtake stations. The lightweight body regulator is suited for natural, non-aggressive and manufactured gases such as nitrogen, carbon dioxide, and propane.​​

Overview
Features and Benefits:
  • Lightweight body (not DN100 & DN150)
  • High-capacity compact body
  • Optional with internal or external measuring impulse connection
  • Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases upon enquiry
  • CE registration according to GAD
  • Max. inlet pressure pu max: up to 0.2 bar
  • Outlet pressure range Wd: 0.011 to 0.15 bar
  • Temperature range: between –20 °C to 60 °C
  • Connection: R ¾", R 1", R 1 ¼", R 1 ½", R 2", flanged DN50, DN65, DN80, DN100 and DN150
All mechanical components of this device are without ignition sources. As such, they are not subject to ATEX 95 (94/9/EC). All electrical components used with this device fulfil the ATEX requirements.
