smartline st800 pressure transmitters

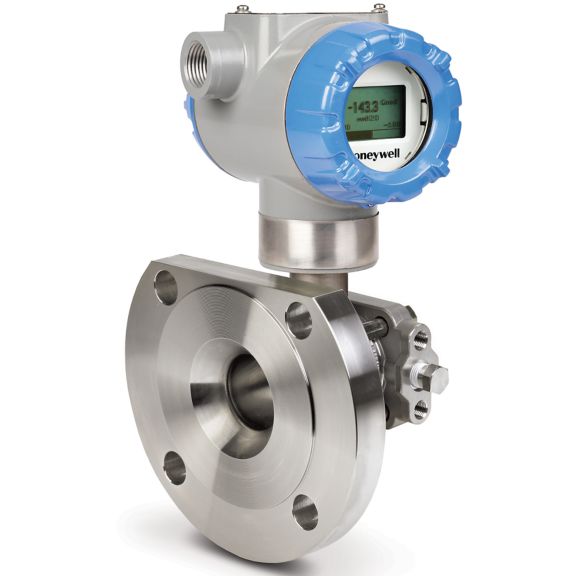

SmartLine STF800 - Flange Mount
SmartLine® ST800 Flange Mount Pressure Transmitters may be installed directly onto a tank flange and are offered with a variety of tank connections.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
ST800 Flange Mount Pressure Transmitters are ideal for critical applications such as natural gas custody transfer and energy and material balances, where accuracy and stability are of utmost importance. Four ranges of the transmitters are available with the following range and span:
| STF828 | -400 to 400 inH2O (-1000 to 1000 mbar) | 4 to 400 inH2O (10 to 1000 mbar) |
| STF832 | -100 to 100 psi (-7 to 7 bar) | 1 to 100 psi (0.07 to 7 bar) |
| STF82F | -400 to 400 inH2O (-1000 to 1000 mbar) | 1 to 400 inH2O (2.5 to 1000 mbar) |
| STF83F | -100 to 100 psi (-7 to 7 bar) | 1 to 100 psi (0.07 to 7 bar) |
Specifications
Processing & Performance Metrics
- Accuracy
- Up to 0.0375% of span (standard), 0.025% (optional)
- Minimum Span
- STF828/STF82F: 4 inH₂O (10 mbar)
- STF832/STF83F: 1 psi (0.07 bar)
- Maximum Turndown Ratio
- 100:1
Wiring / Mechanical & Physical Properties
- Wiring
- Up to 16 AWG (1.5 mm diameter)
Mechanical & Physical Properties
- Wetted Materials
- 316L Stainless Steel, Hastelloy C-276, Monel 400
Electrical Specifications
- Supply Voltage
- DE: 15 to 49.3 VDC
- FF: 9 to 32 VDC
- HART: 10.8 to 42.4 VDC
- Pressure Range
- STF828/STF82F: 400 inH₂O (1000 mbar)
- STF832/STF83F: 100 psi (7 bar)
Environmental Conditions
- Stability
- Up to 0.01% of URL per year for 15 years
- Relative Humidity
- 0 to 100% RH
- Rangeability
- Up to 100:1
- Measurement Type
- Flange Mounted Level (Hydrostatic Pressure)
- Maximum Allowable Working Pressure (MAWP)
- Varies by flange class and material
- Ambient Temperature Limits
- -40 to +85 deg C (Ambient); -55 to +120 deg C (Storage)
Functional & Control Features
- Sensor Technology
- Piezoresistive sensor with static pressure & temperature compensation
- Diagnostics
- Comprehensive On-Board Diagnostics, Plugged Impulse Line Detection (PILD) option
Standards & Certifications
- Safety Approvals
- SIL 2/3 certified, Dual Seal design, NAMUR NE-107 Extended Diagnostics
- Approvals
- FM, CSA, ATEX, IECEx, NEPSI, KOSHA, EAC, CCoE, UATR, SAEx, INMETRO, Marine (ABS, BV, DNV, KR, LR), IEC 61508 SIL 2/3
I/O Capabilities
- Response Time
- As fast as 90 ms millisecond
- Process Connection Type
- 1/4 in NPT, 1/2 in NPT with Adapter, DIN, Flange: 2, 3, 4 in ANSI 150/300, DN50/80/100 PN40 DIN
- Marine Certification
- ABS, BV, DNV, KR, LR
- Configuration
- External Zero, Span & Configuration Capability; Three-Button Local Configuration
Communication Interfaces
- Process Interface Temp.
- Up to 175 deg C (350 deg F) for STF828, STF832
Overview
- Models
- STF828, STF82F, STF832, STF83F
Software & Interface
- Fill Fluids
- Silicone Oil 200, CTFE, NEOBEE M-20, Silicone Oil 704
Communication & Protocols
- Air Pressure Switch
- 4 to 20 mA, Honeywell DE, HART (v7.0), FOUNDATION Fieldbus
Technical Specifications
- Air Capacity
- Modular LCD (Alphanumeric or Advanced Graphics), Multiple Screens, Configurable units
Processing & Performance Metrics
- Accuracy
- Up to 0.0375% of span (standard), 0.025% (optional)
- Minimum Span
- STF828/STF82F: 4 inH₂O (10 mbar)
- STF832/STF83F: 1 psi (0.07 bar)
- Maximum Turndown Ratio
- 100:1
Wiring / Mechanical & Physical Properties
- Wiring
- Up to 16 AWG (1.5 mm diameter)
Mechanical & Physical Properties
- Wetted Materials
- 316L Stainless Steel, Hastelloy C-276, Monel 400
Electrical Specifications
- Supply Voltage
- DE: 15 to 49.3 VDC
- FF: 9 to 32 VDC
- HART: 10.8 to 42.4 VDC
- Pressure Range
- STF828/STF82F: 400 inH₂O (1000 mbar)
- STF832/STF83F: 100 psi (7 bar)
Environmental Conditions
- Stability
- Up to 0.01% of URL per year for 15 years
- Relative Humidity
- 0 to 100% RH
- Rangeability
- Up to 100:1
- Measurement Type
- Flange Mounted Level (Hydrostatic Pressure)
- Maximum Allowable Working Pressure (MAWP)
- Varies by flange class and material
- Ambient Temperature Limits
- -40 to +85 deg C (Ambient); -55 to +120 deg C (Storage)
Functional & Control Features
- Sensor Technology
- Piezoresistive sensor with static pressure & temperature compensation
- Diagnostics
- Comprehensive On-Board Diagnostics, Plugged Impulse Line Detection (PILD) option
Standards & Certifications
- Safety Approvals
- SIL 2/3 certified, Dual Seal design, NAMUR NE-107 Extended Diagnostics
- Approvals
- FM, CSA, ATEX, IECEx, NEPSI, KOSHA, EAC, CCoE, UATR, SAEx, INMETRO, Marine (ABS, BV, DNV, KR, LR), IEC 61508 SIL 2/3
I/O Capabilities
- Response Time
- As fast as 90 ms millisecond
- Process Connection Type
- 1/4 in NPT, 1/2 in NPT with Adapter, DIN, Flange: 2, 3, 4 in ANSI 150/300, DN50/80/100 PN40 DIN
- Marine Certification
- ABS, BV, DNV, KR, LR
- Configuration
- External Zero, Span & Configuration Capability; Three-Button Local Configuration
Communication Interfaces
- Process Interface Temp.
- Up to 175 deg C (350 deg F) for STF828, STF832
Overview
- Models
- STF828, STF82F, STF832, STF83F
Software & Interface
- Fill Fluids
- Silicone Oil 200, CTFE, NEOBEE M-20, Silicone Oil 704
Communication & Protocols
- Air Pressure Switch
- 4 to 20 mA, Honeywell DE, HART (v7.0), FOUNDATION Fieldbus
Technical Specifications
- Air Capacity
- Modular LCD (Alphanumeric or Advanced Graphics), Multiple Screens, Configurable units
- Accuracy : Up to 0.0375% of span (standard), 0.025% (optional)
- Wiring : Up to 16 AWG (1.5 mm diameter)
- Wetted Materials : 316L Stainless Steel, Hastelloy C-276, Monel 400
- Supply Voltage : DE: 15 to 49.3 VDC|FF: 9 to 32 VDC|HART: 10.8 to 42.4 VDC
- Stability : Up to 0.01% of URL per year for 15 years
- Sensor Technology : Piezoresistive sensor with static pressure & temperature compensation
- Safety Approvals : SIL 2/3 certified, Dual Seal design, NAMUR NE-107 Extended Diagnostics
- Response Time : As fast as 90 ms millisecond
- Relative Humidity : 0 to 100% RH
- Rangeability : Up to 100:1
- Process Interface Temp. : Up to 175 deg C (350 deg F) for STF828, STF832
- Process Connection Type : 1/4 in NPT, 1/2 in NPT with Adapter, DIN, Flange: 2, 3, 4 in ANSI 150/300, DN50/80/100 PN40 DIN
- Pressure Range : STF828/STF82F: 400 inH₂O (1000 mbar)|STF832/STF83F: 100 psi (7 bar)
- Models : STF828, STF82F, STF832, STF83F
- Minimum Span : STF828/STF82F: 4 inH₂O (10 mbar)|STF832/STF83F: 1 psi (0.07 bar)
- Measurement Type : Flange Mounted Level (Hydrostatic Pressure)
- Maximum Turndown Ratio : 100:1
- Maximum Allowable Working Pressure (MAWP) : Varies by flange class and material
- Marine Certification : ABS, BV, DNV, KR, LR
- Fill Fluids : Silicone Oil 200, CTFE, NEOBEE M-20, Silicone Oil 704
- Diagnostics : Comprehensive On-Board Diagnostics, Plugged Impulse Line Detection (PILD) option
- Configuration : External Zero, Span & Configuration Capability; Three-Button Local Configuration
- Approvals : FM, CSA, ATEX, IECEx, NEPSI, KOSHA, EAC, CCoE, UATR, SAEx, INMETRO, Marine (ABS, BV, DNV, KR, LR), IEC 61508 SIL 2/3
- Ambient Temperature Limits : -40 to +85 deg C (Ambient); -55 to +120 deg C (Storage)
- Air Pressure Switch : 4 to 20 mA, Honeywell DE, HART (v7.0), FOUNDATION Fieldbus
- Air Capacity : Modular LCD (Alphanumeric or Advanced Graphics), Multiple Screens, Configurable units
