Gas Leak Detectors
SENSIT portable combustible gas leak detectors are ideal for detecting and locating natural gas, propane gas and butane gas leaks quickly.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

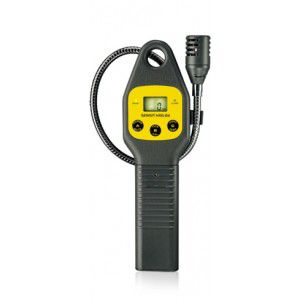

SENSIT® HXG-2d is the first affordable gas leak detector with a true digital display, because knowing exactly how much counts! The HXG-2d is intrinsically safe, durable and reliable. It’s new patent pending electronic tick control is ideal for locating Natural, Propane and Butane gas leaks quickly.
No More Guess Work
No More Guess Work
- Direct PPM Readout 0-990 ppm
- Direct LEL % Readout 0-100% LEL
- Push-Button Operation
- Field Calibration
- Backlit Display
- Adjustable Alarms
- Long-life, Low-Cost Sensor
Specifications
Performance
- Accuracy
- ±10%
Construction
- Sensor Type
- Long-life, low-cost sensor
Measurement
- Resolution
- 10 ppm (PPM), 0.1% LEL
Functional Features
- Probe
- Flexible gooseneck probe
- Display Output
- Direct PPM and LEL readout
Electrical
- Power Source
- 3 “C” batteries
Measurement & Metrology
- PPM Range
- 0 to 990 ppm
Operating Conditions
- Operating Temperature Range
- -4 to 104 deg F (-20 to 40 deg C)
- Enclosure Rating
- IP20
General Overview
- Measurement Type
- Combustible gas concentration (PPM and LEL %)
- Applications
- Leak detection, monitoring, and pinpointing in gas systems
Safety/Detection
- LEL Range
- 0 to 100% LEL
Display
- Indicators
- Alarm LED, graphic display
Gases Supported
- Gas Type
- Methane, propane, butane, ammonia, gasoline, hydrogen, solvents, refrigerants
Control & Interface
- Display Type
- Digital backlit display
Physical
- Dimensions
- 3.5 x 10 x 1.6 in
Control & Operation
- Control Type
- Push-button operation
Power
- Battery Lifetime
- ~50 hours continuous
Safety & Compliance
- Approvals
- USA Class 1, Division 1, Groups C & D; ATEX II 2G
Performance
- Accuracy
- ±10%
Construction
- Sensor Type
- Long-life, low-cost sensor
Measurement
- Resolution
- 10 ppm (PPM), 0.1% LEL
Functional Features
- Probe
- Flexible gooseneck probe
- Display Output
- Direct PPM and LEL readout
Electrical
- Power Source
- 3 “C” batteries
Measurement & Metrology
- PPM Range
- 0 to 990 ppm
Operating Conditions
- Operating Temperature Range
- -4 to 104 deg F (-20 to 40 deg C)
- Enclosure Rating
- IP20
General Overview
- Measurement Type
- Combustible gas concentration (PPM and LEL %)
- Applications
- Leak detection, monitoring, and pinpointing in gas systems
Safety/Detection
- LEL Range
- 0 to 100% LEL
Display
- Indicators
- Alarm LED, graphic display
Gases Supported
- Gas Type
- Methane, propane, butane, ammonia, gasoline, hydrogen, solvents, refrigerants
Control & Interface
- Display Type
- Digital backlit display
Physical
- Dimensions
- 3.5 x 10 x 1.6 in
Control & Operation
- Control Type
- Push-button operation
Power
- Battery Lifetime
- ~50 hours continuous
Safety & Compliance
- Approvals
- USA Class 1, Division 1, Groups C & D; ATEX II 2G
- Accuracy : ±10%
- Sensor Type : Long-life, low-cost sensor
- Resolution : 10 ppm (PPM), 0.1% LEL
- Probe : Flexible gooseneck probe
- Power Source : 3 “C” batteries
- PPM Range : 0 to 990 ppm
- Operating Temperature Range : -4 to 104 deg F (-20 to 40 deg C)
- Measurement Type : Combustible gas concentration (PPM and LEL %)
- LEL Range : 0 to 100% LEL
- Indicators : Alarm LED, graphic display
- Gas Type : Methane, propane, butane, ammonia, gasoline, hydrogen, solvents, refrigerants
- Enclosure Rating : IP20
- Display Type : Digital backlit display
- Display Output : Direct PPM and LEL readout
- Dimensions : 3.5 x 10 x 1.6 in
- Control Type : Push-button operation
- Battery Lifetime : ~50 hours continuous
- Approvals : USA Class 1, Division 1, Groups C & D; ATEX II 2G
- Applications : Leak detection, monitoring, and pinpointing in gas systems
