Beta BBG/BBC
All-purpose, high input, Multi-fuel combination burner for industrial applications
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

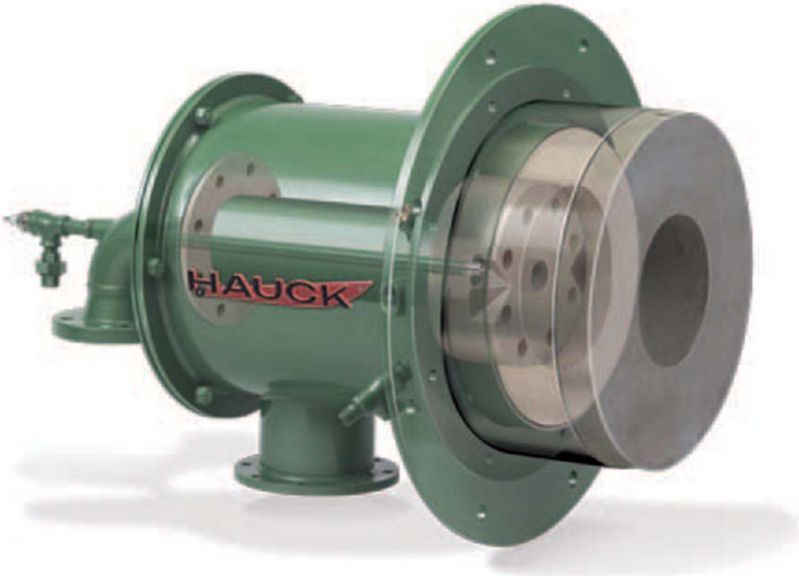

The Beta Burner comes in Gas Only (BBG) or Combination Fuel (BBC). BBG is an all purpose, high input industrial design burner with a high quality, rugged steel design. It is engineered to operate across a broad range of air/fuel ratios and optimized to product low emissions levels.
Features & Benefits:
Features & Benefits:
- Capacity range: 2,900 kBTU/h to 109,000 kBTU/h (760 to 28,920 kW)
- Fuels: Natual Gas
- Alloy or refractory tile options
- On-ratio turndown varies with fuel type and excess air
- Low air and fuel pressure requirements
- Engineered to operate across a wide range of air/fuel ratios
- UV or Ionization flame supervision
- Insulated versions for preheated air up to 900°F (480°C)
- Direct Spark or Pilot ignition ??????BBC Multi-Fuel Combination Beta Burner is designed for durability and long life in continuous or intermittent operation in a variety of heating environments. Low air and fuel pressure requirements make it an ideal all-purpose burner for applications including thermal fluid heaters, oxidizers, rotary kilns, gypsum kettles, air heaters, and incinerators. The BBC also operates in applications under pressure or suction.Features and Benefits:
- Capacity range: 2,900 kBTU/h to 109,000 kBTU/h (760 to 28,920 kW)
- Fuels: any clean industrial fuel with a higher heating value of 500 BTU/scf (19.7 MJ/nm³)
- Alloy or refractory tile
- On-ratio turndown varies with fuel type and excess air
- High quality, rugged steel design
- Low air and fuel pressure requirements
- Engineered to operate across a wide range of air/fuel ratios
- UV flame supervision
- Insulated versions for preheated air up to 900°F (480°C)
- Pilot ignition
- Low pressure atomization for light oil or liquid propane
- Compressed air atomization available for high altitudes or heavy fuel oils
Specifications
Air & Combustion Air Specifications
- Air Preheat Capability
- Up to 900 deg F (480 deg C)
- Air Supply Requirement
- Nominal 16 osig (68.9 mbar)
Performance, Flow & Capacity
- Turndown Ratio
- BBC Multi-Fuel Beta Burner: Varies with fuel type, higher with excess air
- BBG Gas Beta Burner; Approximately 10:1 (higher with excess air)
Mechanical Design, Layout & Construction Options
- Tile Options
- Alloy or refractory, converging/diverging
Combustion, Mixing & Fuel Dynamics
- Minimum Heating Value
- >500 Btu/scf (19.7 MJ/nm³
Ignition, Flame & Supervision Specifications
- Ignition Type
- BBC Multi-Fuel Beta Burner: Pilot ignition
- BBG Gas Beta Burner: Direct spark (BBG_204-212), pilot ignition
- Flame Supervision
- BBC Multi-Fuel Beta Burner: UV flame supervision
- BBG Gas Beta Burner:UV (all models), ionization (BBG1_04-1_12)
Pressure Specifications
- Gas Supply Pressure
- 4 osig (17.2 mbar)
Fuel, Gas & Media Specifications
- Fuel Type
- BBC Multi-Fuel Beta Burner - Clean industrial fuel gas, light oil, liquid propane, heavy fuel oils
- BBG Gas Beta Burner -Clean industrial fuel gas
Processing & Performance Metrics
- Capacity Range
- BBC Multi-Fuel Beta Burner - 2.9 to 109 million Btu/hr (760 to 28,920 kW)
- BBG Gas Beta Burner - 3.1 to 123 million Btu/hr (820 to 32,520 kW)
Overview
- Burner Type
- BBC Multi-Fuel Beta Burner - Gas‑only high‑input industrial burner
- BBG Gas Beta Burner - Multi‑fuel combination industrial burner
Standards & Certifications
- Approvals
- BBG Gas Beta Burner - Compliance EN 762-2 (2010) and EN ISO 12100 (2010)
Maximum/Minimum Temperature Limits
- Application Temperature Limit
- Alloy tile: 1800 deg F (980 deg C)
- Refractory tile: 2800 deg F (1540 deg C)
Air & Combustion Air Specifications
- Air Preheat Capability
- Up to 900 deg F (480 deg C)
- Air Supply Requirement
- Nominal 16 osig (68.9 mbar)
Performance, Flow & Capacity
- Turndown Ratio
- BBC Multi-Fuel Beta Burner: Varies with fuel type, higher with excess air
- BBG Gas Beta Burner; Approximately 10:1 (higher with excess air)
Mechanical Design, Layout & Construction Options
- Tile Options
- Alloy or refractory, converging/diverging
Combustion, Mixing & Fuel Dynamics
- Minimum Heating Value
- >500 Btu/scf (19.7 MJ/nm³
Ignition, Flame & Supervision Specifications
- Ignition Type
- BBC Multi-Fuel Beta Burner: Pilot ignition
- BBG Gas Beta Burner: Direct spark (BBG_204-212), pilot ignition
- Flame Supervision
- BBC Multi-Fuel Beta Burner: UV flame supervision
- BBG Gas Beta Burner:UV (all models), ionization (BBG1_04-1_12)
Pressure Specifications
- Gas Supply Pressure
- 4 osig (17.2 mbar)
Fuel, Gas & Media Specifications
- Fuel Type
- BBC Multi-Fuel Beta Burner - Clean industrial fuel gas, light oil, liquid propane, heavy fuel oils
- BBG Gas Beta Burner -Clean industrial fuel gas
Processing & Performance Metrics
- Capacity Range
- BBC Multi-Fuel Beta Burner - 2.9 to 109 million Btu/hr (760 to 28,920 kW)
- BBG Gas Beta Burner - 3.1 to 123 million Btu/hr (820 to 32,520 kW)
Overview
- Burner Type
- BBC Multi-Fuel Beta Burner - Gas‑only high‑input industrial burner
- BBG Gas Beta Burner - Multi‑fuel combination industrial burner
Standards & Certifications
- Approvals
- BBG Gas Beta Burner - Compliance EN 762-2 (2010) and EN ISO 12100 (2010)
Maximum/Minimum Temperature Limits
- Application Temperature Limit
- Alloy tile: 1800 deg F (980 deg C)
- Refractory tile: 2800 deg F (1540 deg C)
- Air Preheat Capability : Up to 900 deg F (480 deg C)
- Turndown Ratio : BBC Multi-Fuel Beta Burner: Varies with fuel type, higher with excess air|BBG Gas Beta Burner; Approximately 10:1 (higher with excess air)
- Tile Options : Alloy or refractory, converging/diverging
- Minimum Heating Value : >500 Btu/scf (19.7 MJ/nm³
- Ignition Type : BBC Multi-Fuel Beta Burner: Pilot ignition|BBG Gas Beta Burner: Direct spark (BBG_204-212), pilot ignition
- Gas Supply Pressure : 4 osig (17.2 mbar)
- Fuel Type : BBC Multi-Fuel Beta Burner - Clean industrial fuel gas, light oil, liquid propane, heavy fuel oils|BBG Gas Beta Burner -Clean industrial fuel gas
- Flame Supervision : BBC Multi-Fuel Beta Burner: UV flame supervision|BBG Gas Beta Burner:UV (all models), ionization (BBG1_04-1_12)
- Capacity Range : BBC Multi-Fuel Beta Burner - 2.9 to 109 million Btu/hr (760 to 28,920 kW)|BBG Gas Beta Burner - 3.1 to 123 million Btu/hr (820 to 32,520 kW)
- Burner Type : BBC Multi-Fuel Beta Burner - Gas‑only high‑input industrial burner|BBG Gas Beta Burner - Multi‑fuel combination industrial burner
- Approvals : BBG Gas Beta Burner - Compliance EN 762-2 (2010) and EN ISO 12100 (2010)
- Application Temperature Limit : Alloy tile: 1800 deg F (980 deg C)|Refractory tile: 2800 deg F (1540 deg C)
- Air Supply Requirement : Nominal 16 osig (68.9 mbar)
