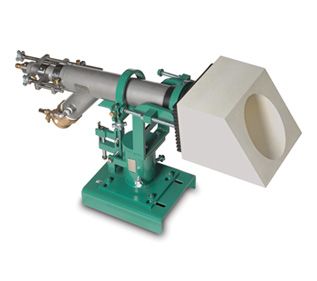

BrightFire 200
Low NOx, air-fuel burner for regenerative glass melting applications. The BrightFire 200 is highly adjustable to allow for increased flexibility on heat transfer, and gas flow. A single gas connection allows for simplified piping and operation.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The Eclipse BrightFire 200 is an adjustable, low NOx, air-fuel burner, compatible with regenerative glass furnaces. The burner provides superior flame and heat transfer adjustability by providing a gas flow adjustment in addition to area adjustment. This valve combination allows increased flexibility in flame geometry, location of heat input into the gas melt, and a significant reduction in NOx.
Features & Benefits:
Features & Benefits:
- Additional adjustments for increased flame control and burner flexibility
- Very low NOx
- Can be tuned to maximize heat transfer and minimize NOx
- Single gas connection for simplified, cost effective application
- Compatible with Eclipse mounting bracket and socket plate for easy installation
- Compatible with current BrightFire gas and cooling air connections for easy conversion
- Nozzle combinations allow firing to be tailored to furnace requirements
- Durable construction
- Low maintenance
- Improved glass quality
- Reduced fuel usage due to improved heat transfer into the glass
Specifications
Air & Combustion Air Specifications
- Atomizing Air Flow
- 13 to 66 SCFM (≈ 21 to 106 Nm³/h) (Oil)
- Internal Cooling Air Flow
- 7 to 14 SCFM (11 to 23 Nm³/h)
Applications & Compatibility
- Typical Applications
- Furnaces, Kilns, Incinerators, High‑Temperature Industrial Heating
Overview
- Product Category
- High‑intensity industrial burner
- Models
- Size G, Size M, Size B
- Burner Type
- Adjustable, low NOx, air-fuel burner
Combustion, Fuel & Mixing Sub‑Systems
- Oil Firing Range
- Size B: 11-28 MMBtu/h
- Size G: 2-10 MMBtu/h
- Size M: 5-21 MMBtu/h
Combustion Air, Blower & Emissions Specifications
- Minimum External Cooling Air
- 200 SCFM (≈ 322 Nm³/h)
Pressure Specifications
- Internal Cooling Air Pressure
- 2 to 8 psi (138 to 552 mbar)
- Gas Inlet Pressure
- 0.5 to 7 psi (34.5 to 482.6 mbar), input‑dependent
- Atomizing Air Pressure
- 30 to 40 psi (2.1 to 2.8 bar)
Fuel, Gas & Media Specifications
- Heavy Oil Limitation
- Max 100 SSU viscosity at burner
- Fuel Capability
- Gas and oil (oil with atomizing air insert)
Connections & Interfaces
- Fuel Inlet Connections
- Size B: 3 in NPT/Quick Disconnect
- Size G/M: 2 in NPT/Quick Disconnect
- Cooling Air Connection
- 1/2 in quick‑disconnect
Ignition, Flame & Supervision Specifications
- Flame Spread
- 22 deg nominal, adjustable ±4 deg via block bore sizing
Combustion Design & Characteristics
- Combustion Concept
- High‑velocity flame with adjustable flame angle
Processing & Performance Metrics
- Capacity Range
- Size B: 10-31 MMBtu/h (2931-9085 kW)
- Size G: 2-10 MMBtu/h (586-2931 kW)
- Size M: 5-17 MMBtu/h (1465-4982 kW)
Dimensions & Length Specifications
- Burner Length Range
- 17 to 36 in. (432 to 914 mm)
Air & Combustion Air Specifications
- Atomizing Air Flow
- 13 to 66 SCFM (≈ 21 to 106 Nm³/h) (Oil)
- Internal Cooling Air Flow
- 7 to 14 SCFM (11 to 23 Nm³/h)
Applications & Compatibility
- Typical Applications
- Furnaces, Kilns, Incinerators, High‑Temperature Industrial Heating
Overview
- Product Category
- High‑intensity industrial burner
- Models
- Size G, Size M, Size B
- Burner Type
- Adjustable, low NOx, air-fuel burner
Combustion, Fuel & Mixing Sub‑Systems
- Oil Firing Range
- Size B: 11-28 MMBtu/h
- Size G: 2-10 MMBtu/h
- Size M: 5-21 MMBtu/h
Combustion Air, Blower & Emissions Specifications
- Minimum External Cooling Air
- 200 SCFM (≈ 322 Nm³/h)
Pressure Specifications
- Internal Cooling Air Pressure
- 2 to 8 psi (138 to 552 mbar)
- Gas Inlet Pressure
- 0.5 to 7 psi (34.5 to 482.6 mbar), input‑dependent
- Atomizing Air Pressure
- 30 to 40 psi (2.1 to 2.8 bar)
Fuel, Gas & Media Specifications
- Heavy Oil Limitation
- Max 100 SSU viscosity at burner
- Fuel Capability
- Gas and oil (oil with atomizing air insert)
Connections & Interfaces
- Fuel Inlet Connections
- Size B: 3 in NPT/Quick Disconnect
- Size G/M: 2 in NPT/Quick Disconnect
- Cooling Air Connection
- 1/2 in quick‑disconnect
Ignition, Flame & Supervision Specifications
- Flame Spread
- 22 deg nominal, adjustable ±4 deg via block bore sizing
Combustion Design & Characteristics
- Combustion Concept
- High‑velocity flame with adjustable flame angle
Processing & Performance Metrics
- Capacity Range
- Size B: 10-31 MMBtu/h (2931-9085 kW)
- Size G: 2-10 MMBtu/h (586-2931 kW)
- Size M: 5-17 MMBtu/h (1465-4982 kW)
Dimensions & Length Specifications
- Burner Length Range
- 17 to 36 in. (432 to 914 mm)
- Atomizing Air Flow : 13 to 66 SCFM (≈ 21 to 106 Nm³/h) (Oil)
- Typical Applications : Furnaces, Kilns, Incinerators, High‑Temperature Industrial Heating
- Product Category : High‑intensity industrial burner
- Oil Firing Range : Size B: 11-28 MMBtu/h|Size G: 2-10 MMBtu/h|Size M: 5-21 MMBtu/h
- Models : Size G, Size M, Size B
- Minimum External Cooling Air : 200 SCFM (≈ 322 Nm³/h)
- Internal Cooling Air Pressure : 2 to 8 psi (138 to 552 mbar)
- Internal Cooling Air Flow : 7 to 14 SCFM (11 to 23 Nm³/h)
- Heavy Oil Limitation : Max 100 SSU viscosity at burner
- Gas Inlet Pressure : 0.5 to 7 psi (34.5 to 482.6 mbar), input‑dependent
- Fuel Inlet Connections : Size B: 3 in NPT/Quick Disconnect|Size G/M: 2 in NPT/Quick Disconnect
- Fuel Capability : Gas and oil (oil with atomizing air insert)
- Flame Spread : 22 deg nominal, adjustable ±4 deg via block bore sizing
- Cooling Air Connection : 1/2 in quick‑disconnect
- Combustion Concept : High‑velocity flame with adjustable flame angle
- Capacity Range : Size B: 10-31 MMBtu/h (2931-9085 kW)|Size G: 2-10 MMBtu/h (586-2931 kW)|Size M: 5-17 MMBtu/h (1465-4982 kW)
- Burner Type : Adjustable, low NOx, air-fuel burner
- Burner Length Range : 17 to 36 in. (432 to 914 mm)
- Atomizing Air Pressure : 30 to 40 psi (2.1 to 2.8 bar)
