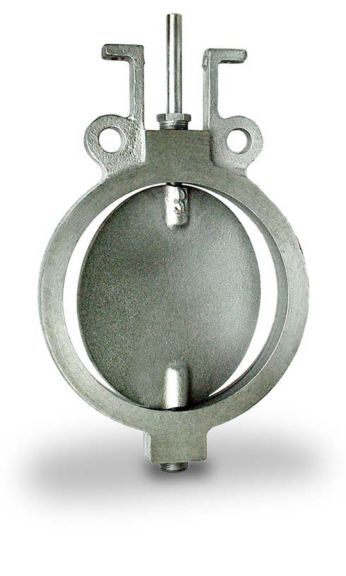

Wafer Butterfly Valves for Hot Air WBV-H
Wafer butterfly valves designed to control high temperature ambient air or preheated combustion air.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Wafer Butterfly Valves are used to trim or control ambient or preheated air. The valve can be ordered with a hand lever or can be supplied with a lever and linkage for automatic control. When sizing wafer butterfly valves for automatic control, normal practice is to size for a valve differential pressure (∆p) of 10-20 % of total available air pressure. When ordering, specify temperature service desired: ambient air to 400 °F, or preheated air to 1200 °F.
Features & Benefits:
Features & Benefits:
- To trim or control ambient or preheated air
- Available with hand lever or with lever and linkage for automatic control
- WBV-H can be used in temperatures of up to 1200 °F for preheated air
- WBV-H can be used in temperatures of up to 400 °F for ambient air
Specifications
Air & Combustion Air Specifications
- Air Capacity
- Capacity values provided at 0.5 in WC and 1.0 in WC Δp by valve size (at 70 deg Open)
Actuation, Valve & Motion Control Specifications
- Valve Type
- Wafer‑style butterfly valve
- Torque Rating
- Static torque table for 32 and 64 osi: 6 in=11/29, 8 in=11/29, 10 in=18/44, 12 in=34/85, 14 in=42/104, 16 in=55/137, 18 in=94/234, 20 in=112/291, 22 in=142/355 in‑lbs
Processing & Performance Metrics
- Sizing Recommendation
- Select for Δp = 10-20% of total available air pressure
- Flow Characteristic
- Full-port, increased flow up to 70 deg , minimal pressure drop at 90 deg
Dimensions & Size Specifications
- Size Range
- 6 to 22 in (larger sizes upon request)
Control, Logic & System Behavior
- Operating Modes
- Manual lever or automatic (lever + linkage)
Maximum/Minimum Temperature Limits
- Maximum Temperature
- Ambient Air - 400 deg F, Preheated Air - 1200 deg F
Applications & Compatibility
- Applications
- Trim or control ambient or preheated air
Air & Combustion Air Specifications
- Air Capacity
- Capacity values provided at 0.5 in WC and 1.0 in WC Δp by valve size (at 70 deg Open)
Actuation, Valve & Motion Control Specifications
- Valve Type
- Wafer‑style butterfly valve
- Torque Rating
- Static torque table for 32 and 64 osi: 6 in=11/29, 8 in=11/29, 10 in=18/44, 12 in=34/85, 14 in=42/104, 16 in=55/137, 18 in=94/234, 20 in=112/291, 22 in=142/355 in‑lbs
Processing & Performance Metrics
- Sizing Recommendation
- Select for Δp = 10-20% of total available air pressure
- Flow Characteristic
- Full-port, increased flow up to 70 deg , minimal pressure drop at 90 deg
Dimensions & Size Specifications
- Size Range
- 6 to 22 in (larger sizes upon request)
Control, Logic & System Behavior
- Operating Modes
- Manual lever or automatic (lever + linkage)
Maximum/Minimum Temperature Limits
- Maximum Temperature
- Ambient Air - 400 deg F, Preheated Air - 1200 deg F
Applications & Compatibility
- Applications
- Trim or control ambient or preheated air
- Air Capacity : Capacity values provided at 0.5 in WC and 1.0 in WC Δp by valve size (at 70 deg Open)
- Valve Type : Wafer‑style butterfly valve
- Torque Rating : Static torque table for 32 and 64 osi: 6 in=11/29, 8 in=11/29, 10 in=18/44, 12 in=34/85, 14 in=42/104, 16 in=55/137, 18 in=94/234, 20 in=112/291, 22 in=142/355 in‑lbs
- Sizing Recommendation : Select for Δp = 10-20% of total available air pressure
- Size Range : 6 to 22 in (larger sizes upon request)
- Operating Modes : Manual lever or automatic (lever + linkage)
- Maximum Temperature : Ambient Air - 400 deg F, Preheated Air - 1200 deg F
- Flow Characteristic : Full-port, increased flow up to 70 deg , minimal pressure drop at 90 deg
- Applications : Trim or control ambient or preheated air
