Industrial Flame Monitoring (IFM)

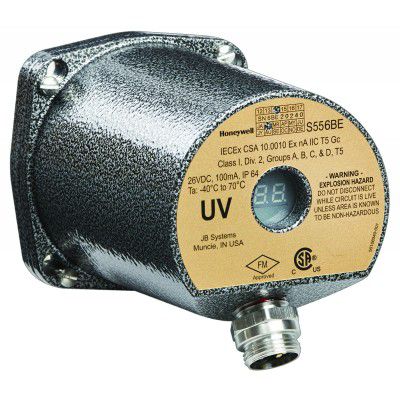

Viewing Heads S55XBE
Single channel UV+IR Viewing Head to be used with P522/P531/P532 Signal Processors.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
S55XBE series viewing heads are used with P522, P531 and P532 signal processors. Multiple sensor options of IR, UV and IR+UV offer flexibility to meet a wide array of applications. The processors are not adversely affected by X-Rays and Gamma rays during operation making them ideal for monitoring all fuel flames and single or multiple burners firing multiple fuels.Features & Benefits:
- Multiple models (IR+UV, IR only and UV only) offer application flexibility
- All models include electronic check (no mechanical shutter) for self-check of the system
- Numeric two-digit display for each sensor on the back of the viewing head provides UV and IR flame count
- Quick disconnect cable (order separately) for non-PF models. PF models provided with factory installed cable
- Mountable in any orientation
- Includes imbedded temperature sensor
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
ACC55XBE
AIR COOLING CAN S55XBE REQ VORTEX COOLER
ACC55XBE
AIR COOLING CAN S55XBE REQ VORTEX COOLER
ASY55XBE
50FT BE CABLE ASSEMBLY FOR S55XBE/WDIII
ASY55XBE
50FT BE CABLE ASSEMBLY FOR S55XBE/WDIII
ASY55XBE-100
100FT BE CABLE ASSEMBLY FOR S55XBE/WDIII
ASY55XBE-100
100FT BE CABLE ASSEMBLY FOR S55XBE/WDIII
ASY55XBE-200
200FT BE CABLE ASSEMBLY FOR S55XBE/WDIII
ASY55XBE-200
200FT BE CABLE ASSEMBLY FOR S55XBE/WDIII
ASY55XBE-300
300FT BE CABLE ASSEMBLY FOR S55XBE/WDIII
ASY55XBE-300
300FT BE CABLE ASSEMBLY FOR S55XBE/WDIII
LTA55XBE
LIQUID TIGHT VIEWING HEAD CABLE ADAPTER
LTA55XBE
LIQUID TIGHT VIEWING HEAD CABLE ADAPTER
R-518-07
AMPHENOL-TUCHEL RECEPTACLE (SXXX)
R-518-07
AMPHENOL-TUCHEL RECEPTACLE (SXXX)
R-518-09
BE QUICK CONNECT FITS C328 CABLE ONLY
R-518-09
BE QUICK CONNECT FITS C328 CABLE ONLY
R-518-11
BE QUICK DISCONNECT C330/C330S CABLE
R-518-11
BE QUICK DISCONNECT C330/C330S CABLE
S550BE
UV+IR COMBO VH WITH TURCK CONNECTOR
S550BE
UV+IR COMBO VH WITH TURCK CONNECTOR
