single burners
RatioAir

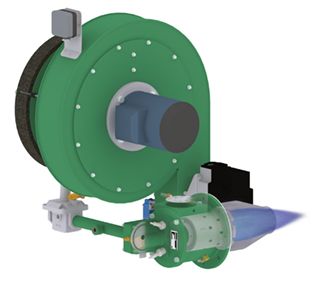

Based on the technology of the ThermJet, the RatioAir is a packaged Velocity Burner utilizing high excess air and ratio control.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The Eclipse RatioAir is a premium air heating burner ideally suited for applications that require:
Features & Benefits:
- A velocity burner with integral packaged blower
- High excess air and ratio control
- Use of unusual fuels (e.g. low Btu fuels)
- High chamber temperatures up to 2500˚F (1370˚C)
- Confined firing chambers
Features & Benefits:
- RatioAir burners are easy to install, operate and maintain
- Integral packaged blower
- High excess air and ratio control
- High chamber temperatures
- Can be disassembled from the rear without entering the firing chamber
- Quick change spark and flame rods; optional quick-change air filter
- Standard nozzles burn natural gas, propane, butane and unusual fuels
- Right or left hand piping. NPT or BSP inlet pipe threads
Specifications
Motor Specifications
- Control Motor Specifications
- ≤2 rpm, ≥25 in-lb torque, 90 deg stroke, reversible
- Blower Motor Types
- NEMA (60Hz), IEC (50Hz), TEFC or automotive duty
- Control Motor
- Kromschröder IC 20 actuator or bracket for customer motor
Air & Combustion Air Specifications
- Combustion Air Requirements
- Fresh (20.9% O₂), clean, ≤150 deg F (65 deg C)
- Excess Air Capability
- 10 to 15% at high fire
- Higher at low fire
- Air/Gas Ratio Control
- Ratio regulator with impulse line
Ignition, Flame & Supervision Specifications
- Ignition Transformer Specs
- 6000 to 8000 VAC, ≥ 0.02 A, Full wave output
- Flame Supervision
- Flame rod (RA0025 to RA0200), UV scanner (all models)
- Flame Monitoring
- Individual or multiple burner control options
- Ignition Type
- Direct Spark Ignition (low fire or bypass start gas)
- Flame Sensor
- Flame rod or UV scanner
Processing & Performance Metrics
- Outlet Tube Velocity
- Standard, Medium (250 ft/s), High (500 ft/s)
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Nozzle‑mix burner
Combustion, Fuel & Mixing Sub‑Systems
- Burner Configuration
- Vertical Down, Vertical Up, Horizontal
Applications & Compatibility
- Primary Application
- Direct and indirect air heating
- Applications
- Industrial Ovens And Furnaces, Glass Lehrs, Indirect‑Fired Air Heaters, RTO Incinerators, Afterburners, Galvanizing Kettles, Waterbath Vaporizers
Pressure Specifications
- Fuel Pressure Range
- Must meet datasheet specs; low pressure may cause unsafe operation
- Pressure Switch
- Detects low air pressure
Operating Limits, Durability & Lifecycle
- Altitude Adjustment
- Capacity reduced ~3% per 1000 ft above sea level
Standards & Certifications
- Safety Standards
- NFPA Compliant (e.g., dual gas shut-off valves)
Actuation, Valve & Motion Control Specifications
- Shut-Off Valves
- Automatic/manual, NFPA compliant
Safety, Protection & Reliability
- Safety Features
- Air pressure switch, flame monitoring, limit switches
- Hazard Warnings
- Hot surfaces, combustion risks, crystalline silica exposure
Control, Logic & Functional Behavior
- Ratio Regulator
- Maintains air/gas ratio via impulse line
Combustion Design & Characteristics
- Combustion Type
- Nozzle-mix, direct or indirect fired
- Combustor Tube
- Alloy (low temp), SiC or refractory block (high temp)
Performance, Flow & Capacity
- Turndown Ratio
- Wide turndown (high‑turndown option available)
Combustion Air, Blower & Emissions Specifications
- Blower Options
- Integrated or remote blower (SMJ series)
Product Design & Configuration
- Burner Family
- RatioAir®
- Burner Design
- Modular design with various configurations
Mechanical Design & Adjustment Characteristics
- Loading Line
- Plastic, Braided Stainless Steel, or Rigid Stainless Tube
Overview
- Burner Type
- Nozzle‑mix air‑heating burner
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas, Propane, Butane
Motor Specifications
- Control Motor Specifications
- ≤2 rpm, ≥25 in-lb torque, 90 deg stroke, reversible
- Blower Motor Types
- NEMA (60Hz), IEC (50Hz), TEFC or automotive duty
- Control Motor
- Kromschröder IC 20 actuator or bracket for customer motor
Air & Combustion Air Specifications
- Combustion Air Requirements
- Fresh (20.9% O₂), clean, ≤150 deg F (65 deg C)
- Excess Air Capability
- 10 to 15% at high fire
- Higher at low fire
- Air/Gas Ratio Control
- Ratio regulator with impulse line
Ignition, Flame & Supervision Specifications
- Ignition Transformer Specs
- 6000 to 8000 VAC, ≥ 0.02 A, Full wave output
- Flame Supervision
- Flame rod (RA0025 to RA0200), UV scanner (all models)
- Flame Monitoring
- Individual or multiple burner control options
- Ignition Type
- Direct Spark Ignition (low fire or bypass start gas)
- Flame Sensor
- Flame rod or UV scanner
Processing & Performance Metrics
- Outlet Tube Velocity
- Standard, Medium (250 ft/s), High (500 ft/s)
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- Nozzle‑mix burner
Combustion, Fuel & Mixing Sub‑Systems
- Burner Configuration
- Vertical Down, Vertical Up, Horizontal
Applications & Compatibility
- Primary Application
- Direct and indirect air heating
- Applications
- Industrial Ovens And Furnaces, Glass Lehrs, Indirect‑Fired Air Heaters, RTO Incinerators, Afterburners, Galvanizing Kettles, Waterbath Vaporizers
Pressure Specifications
- Fuel Pressure Range
- Must meet datasheet specs; low pressure may cause unsafe operation
- Pressure Switch
- Detects low air pressure
Operating Limits, Durability & Lifecycle
- Altitude Adjustment
- Capacity reduced ~3% per 1000 ft above sea level
Standards & Certifications
- Safety Standards
- NFPA Compliant (e.g., dual gas shut-off valves)
Actuation, Valve & Motion Control Specifications
- Shut-Off Valves
- Automatic/manual, NFPA compliant
Safety, Protection & Reliability
- Safety Features
- Air pressure switch, flame monitoring, limit switches
- Hazard Warnings
- Hot surfaces, combustion risks, crystalline silica exposure
Control, Logic & Functional Behavior
- Ratio Regulator
- Maintains air/gas ratio via impulse line
Combustion Design & Characteristics
- Combustion Type
- Nozzle-mix, direct or indirect fired
- Combustor Tube
- Alloy (low temp), SiC or refractory block (high temp)
Performance, Flow & Capacity
- Turndown Ratio
- Wide turndown (high‑turndown option available)
Combustion Air, Blower & Emissions Specifications
- Blower Options
- Integrated or remote blower (SMJ series)
Product Design & Configuration
- Burner Family
- RatioAir®
- Burner Design
- Modular design with various configurations
Mechanical Design & Adjustment Characteristics
- Loading Line
- Plastic, Braided Stainless Steel, or Rigid Stainless Tube
Overview
- Burner Type
- Nozzle‑mix air‑heating burner
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas, Propane, Butane
- Control Motor Specifications : ≤2 rpm, ≥25 in-lb torque, 90 deg stroke, reversible
- Combustion Air Requirements : Fresh (20.9% O₂), clean, ≤150 deg F (65 deg C)
- Ignition Transformer Specs : 6000 to 8000 VAC, ≥ 0.02 A, Full wave output
- Excess Air Capability : 10 to 15% at high fire|Higher at low fire
- Air/Gas Ratio Control : Ratio regulator with impulse line
- Outlet Tube Velocity : Standard, Medium (250 ft/s), High (500 ft/s)
- Combustion Principle : Nozzle‑mix burner
- Burner Configuration : Vertical Down, Vertical Up, Horizontal
- Primary Application : Direct and indirect air heating
- Fuel Pressure Range : Must meet datasheet specs; low pressure may cause unsafe operation
- Altitude Adjustment : Capacity reduced ~3% per 1000 ft above sea level
- Blower Motor Types : NEMA (60Hz), IEC (50Hz), TEFC or automotive duty
- Flame Supervision : Flame rod (RA0025 to RA0200), UV scanner (all models)
- Safety Standards : NFPA Compliant (e.g., dual gas shut-off valves)
- Flame Monitoring : Individual or multiple burner control options
- Shut-Off Valves : Automatic/manual, NFPA compliant
- Safety Features : Air pressure switch, flame monitoring, limit switches
- Ratio Regulator : Maintains air/gas ratio via impulse line
- Pressure Switch : Detects low air pressure
- Hazard Warnings : Hot surfaces, combustion risks, crystalline silica exposure
- Combustion Type : Nozzle-mix, direct or indirect fired
- Turndown Ratio : Wide turndown (high‑turndown option available)
- Combustor Tube : Alloy (low temp), SiC or refractory block (high temp)
- Blower Options : Integrated or remote blower (SMJ series)
- Ignition Type : Direct Spark Ignition (low fire or bypass start gas)
- Control Motor : Kromschröder IC 20 actuator or bracket for customer motor
- Burner Family : RatioAir®
- Burner Design : Modular design with various configurations
- Loading Line : Plastic, Braided Stainless Steel, or Rigid Stainless Tube
- Flame Sensor : Flame rod or UV scanner
- Applications : Industrial Ovens And Furnaces, Glass Lehrs, Indirect‑Fired Air Heaters, RTO Incinerators, Afterburners, Galvanizing Kettles, Waterbath Vaporizers
- Burner Type : Nozzle‑mix air‑heating burner
- Fuel Type : Natural Gas, Propane, Butane
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
10002787
CMBSTR,ALLY,686MM LG,300MM OUTLT,SZ 7,AI
10002787
CMBSTR,ALLY,686MM LG,300MM OUTLT,SZ 7,AI
10005394-3
CMBSTR,ALLY,544MM LG,300MM OUTLT,SZ 7,AI
10005394-3
CMBSTR,ALLY,544MM LG,300MM OUTLT,SZ 7,AI
10012506
SHIM,BDY,SZ 7
10012506
SHIM,BDY,SZ 7
10015028-1
PLT,DIFFSR,AIR,33% OPEN AREA
10015028-1
PLT,DIFFSR,AIR,33% OPEN AREA
10015028-2
PLT,DIFFSR,AIR,50% OPEN AREA
10015028-2
PLT,DIFFSR,AIR,50% OPEN AREA
10053451-1
KIT,LIT,RA,RA0025,ENG
10053451-1
KIT,LIT,RA,RA0025,ENG
10053451-10
KIT,LIT,RA,RA1500,ENG
10053451-10
KIT,LIT,RA,RA1500,ENG
10053451-11
KIT,LIT,RA,RA2000,ENG
10053451-11
KIT,LIT,RA,RA2000,ENG
10053451-2
KIT,LIT,RA,RA0040,ENG
10053451-2
KIT,LIT,RA,RA0040,ENG
10053451-3
KIT,LIT,RA,RA0075,ENG
10053451-3
KIT,LIT,RA,RA0075,ENG
