Pressuretrol® Limit controllers L4079A, B, W, L604N
High pressure limit switch suitable for steam, air, non-combustible gases, and fluids noncorrosive to the sensing element.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

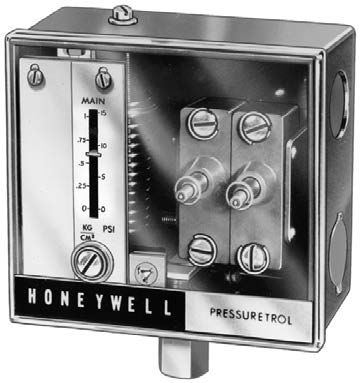

The L4079A,B, and W PressureTrol® Limit Controls are high pressure limit switches that break electrical circuits when pressure rises to a preset value. The L4079A and B can be used with steam, air, noncombustible gases, and fluids noncorrosive to the sensing element. L4079W is for use on oil burner systems.
Features & Benefits:
Features & Benefits:
- L4079A has two ganged spst switches; breaks two circuits (may be both sides of the power supply) simultaneously
- L4079B has one spst switch
- L4079W is the same as L4079B but has seals for oil applications
- MICRO SWITCH® snap-acting switches are visible through transparent cover
- Switches open automatically but must be reset manually
- Trip-free reset mechanisms do not permit the limiting role of the PressureTrol® Control to be defeated by jamming the reset lever
- Control does not need leveling
- The L4079 is unaffected by moderate vibration
Specifications
Overview
- Models
- L4079A, L4079B, L4079W
- Product Type
- High‑pressure limit control
Pressure Specifications
- Maximum Diaphragm Pressure
- Up to 350 psi (2410 kPa) depending on model
- Pressure Range
- 10 to 150 psi (70 to 1035 kPa)
- 2 to 15 psi (15 to 100 kPa)
- 20 to 300 psi (140 to 2070 kPa)
- 5 to 50 psi (35 to 350 kPa)
Environmental Conditions
- Ambient Temperature Limits
- Max 150 deg F (66 deg C)
Electrical Specifications
- Maintenance Interval
- Manual reset and annual function check recommended
Applications & Compatibility
- Media Compatibility
- L4079A, L4079B: Steam, Air, Non‑Combustible Gases, Non‑Corrosive Fluids
- L4079W: Oil Burner Systems
Measurement, Media & Physical Properties
- Differential Range
- 3 to 60 psi (20.7 to 413.7 kPa) depending on model
Electrical & Signal Specifications
- Electrical Rating
- 120 VAC: 9.8 A (Full Load), 58.8 A (Locked Rotor)
- 240 VAC: 4.9 A (Full Load), 29.4 A (Locked Rotor)
Control, Logic & Functional Behavior
- Control Functions
- Safety limit (manual reset)
Mechanical Design & Adjustment Characteristics
- Adjustment Method
- External screw; scale in psi and kPa
Product Overview & Classification
- Primary Function
- Breaks electrical circuit on pressure rise
Installation & Mounting Specifications
- Mounting Types
- 1/4-18 NPT pipe fitting
- Boiler, wall, or remote mounting
Software, Configuration & Cyber
- Configurations
- L4079A: Two ganged SPST switches (breaks two circuits)
- L4079B: One SPST switch (breaks one circuit)
- L4079W: One SPST switch with oil‑resistant seals
Actuation, Control & Motion Characteristics
- Switch Action
- Opens circuit(s) on pressure rise
- Switch Type
- MICRO SWITCH® snap‑acting
Safety, Protection & Reliability
- Reset Type
- Manual reset (trip‑free)
Standards & Certifications
- Approvals
- UL Listed (MP466), CSA Approved (LR95329), WEEE Directive 2012/19/EU compliant
Overview
- Models
- L4079A, L4079B, L4079W
- Product Type
- High‑pressure limit control
Pressure Specifications
- Maximum Diaphragm Pressure
- Up to 350 psi (2410 kPa) depending on model
- Pressure Range
- 10 to 150 psi (70 to 1035 kPa)
- 2 to 15 psi (15 to 100 kPa)
- 20 to 300 psi (140 to 2070 kPa)
- 5 to 50 psi (35 to 350 kPa)
Environmental Conditions
- Ambient Temperature Limits
- Max 150 deg F (66 deg C)
Electrical Specifications
- Maintenance Interval
- Manual reset and annual function check recommended
Applications & Compatibility
- Media Compatibility
- L4079A, L4079B: Steam, Air, Non‑Combustible Gases, Non‑Corrosive Fluids
- L4079W: Oil Burner Systems
Measurement, Media & Physical Properties
- Differential Range
- 3 to 60 psi (20.7 to 413.7 kPa) depending on model
Electrical & Signal Specifications
- Electrical Rating
- 120 VAC: 9.8 A (Full Load), 58.8 A (Locked Rotor)
- 240 VAC: 4.9 A (Full Load), 29.4 A (Locked Rotor)
Control, Logic & Functional Behavior
- Control Functions
- Safety limit (manual reset)
Mechanical Design & Adjustment Characteristics
- Adjustment Method
- External screw; scale in psi and kPa
Product Overview & Classification
- Primary Function
- Breaks electrical circuit on pressure rise
Installation & Mounting Specifications
- Mounting Types
- 1/4-18 NPT pipe fitting
- Boiler, wall, or remote mounting
Software, Configuration & Cyber
- Configurations
- L4079A: Two ganged SPST switches (breaks two circuits)
- L4079B: One SPST switch (breaks one circuit)
- L4079W: One SPST switch with oil‑resistant seals
Actuation, Control & Motion Characteristics
- Switch Action
- Opens circuit(s) on pressure rise
- Switch Type
- MICRO SWITCH® snap‑acting
Safety, Protection & Reliability
- Reset Type
- Manual reset (trip‑free)
Standards & Certifications
- Approvals
- UL Listed (MP466), CSA Approved (LR95329), WEEE Directive 2012/19/EU compliant
- Models : L4079A, L4079B, L4079W
- Maximum Diaphragm Pressure : Up to 350 psi (2410 kPa) depending on model
- Ambient Temperature Limits : Max 150 deg F (66 deg C)
- Maintenance Interval : Manual reset and annual function check recommended
- Media Compatibility : L4079A, L4079B: Steam, Air, Non‑Combustible Gases, Non‑Corrosive Fluids|L4079W: Oil Burner Systems
- Differential Range : 3 to 60 psi (20.7 to 413.7 kPa) depending on model
- Electrical Rating : 120 VAC: 9.8 A (Full Load), 58.8 A (Locked Rotor)|240 VAC: 4.9 A (Full Load), 29.4 A (Locked Rotor)
- Control Functions : Safety limit (manual reset)
- Adjustment Method : External screw; scale in psi and kPa
- Primary Function : Breaks electrical circuit on pressure rise
- Pressure Range : 10 to 150 psi (70 to 1035 kPa)|2 to 15 psi (15 to 100 kPa)|20 to 300 psi (140 to 2070 kPa)|5 to 50 psi (35 to 350 kPa)
- Mounting Types : 1/4-18 NPT pipe fitting|Boiler, wall, or remote mounting
- Configurations : L4079A: Two ganged SPST switches (breaks two circuits)|L4079B: One SPST switch (breaks one circuit)|L4079W: One SPST switch with oil‑resistant seals
- Switch Action : Opens circuit(s) on pressure rise
- Product Type : High‑pressure limit control
- Switch Type : MICRO SWITCH® snap‑acting
- Reset Type : Manual reset (trip‑free)
- Approvals : UL Listed (MP466), CSA Approved (LR95329), WEEE Directive 2012/19/EU compliant
