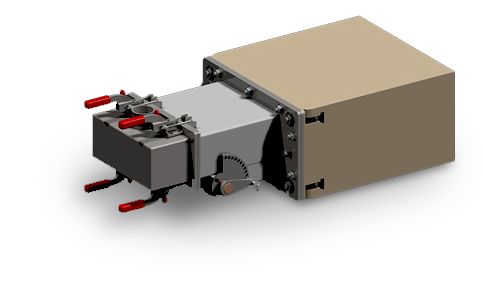

OXY-THERM FHR Burners
Flat flame, oxy-fueled burner for glass melting furnaces. The OXYTHERM FHR features an adjustable staged oxygen design to optimize heat transfer, flame volume and emissions.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
With OXYTHERM® FHR burners firing gas, fuel gas and oxygen for combustion enter the burner housing and mix at the nozzle exit.For oil firing, the oil enters through the nozzle, is atomized with compressed air, then combines with the combustion oxygen as it exits the burner block.The oxygen-fuel flame discharges through the refractory block tunnel to create a high aspect ratio, flat flame pattern.
Features & Benefits:
Features & Benefits:
- Industry lowest NOx levels
- Adjustable staged oxygen design to optimize heat transfer, flame volume and emissions
- Burns any gaseous fuel
- Fuel oil capability ranges from light to heavy fuel oils
- Quickly convert between gas and oil service by changing the fuel nozzle only
- Capacities to 24 MBtu/hr
- Increase available heat by burning fuels with oxygen
Specifications
Operating/Process Temperature Ranges
- Operating Temperature Range
- Up to 3050 deg F (1680 deg C)
Processing & Performance Metrics
- Conversion Capability
- Quick conversion between gas and oil by changing the fuel nozzle
- Capacity Range
- S - 1.3 to 2.9 MBtu/h, M - 2.9 to 5.7 MBtu/h, L - 6 to 12 MBtu/h, X - 10 to 24 MBtu/h
- NOx Emissions
- Industry lowest NOx levels; actual results vary by application and staging
Ignition, Flame & Supervision Specifications
- Cooling Requirements
- Clean, dry air or oxygen when not firing (for hot furnace conditions)
- Flame Type
- High aspect ratio flat flame
Installation & Mounting Specifications
- Mounting Options
- NPT Threaded; removable fuel inserts
Material Specifications
- Nozzle Material
- Gas nozzle: 446 Stainless Steel
- Oil nozzle: 446 Stainless Steel
- Burner Material
- 304 Stainless Steel
Performance, Flow & Capacity
- Turndown Ratio
- 3:1 across all sizes
Combustion, Mixing & Fuel Dynamics
- Oxygen Staging
- Adjustable staged oxygen design to optimize heat transfer, flame volume and emissions
- Fuel Flow
- Gas - 36-667 m³/h, Oil - 41-569 liters/h
Burner/Flame‑Related Lengths
- Flame Length
- S: 4-6 ft, M: 5-10 ft, L: 10-14 ft, XL: 13-17 ft (Oil)
Dimensions & Size Specifications
- Burner Sizes
- Small (S), Medium (M), Large (L), Extra Large (X)
Applications & Compatibility
- Applications
- Glass Furnaces, Day Tanks, Incinerators, Metal Melting Furnaces, Reheat Furnaces, Kilns (>1400 deg F / 760 deg C)
Overview
- Burner Type
- Dual-fuel oxygen burner (gas and oil)
Fuel, Gas & Media Specifications
- Fuel Type
- Any clean fuel gas, light fuel oil, heavy fuel oil
Operating/Process Temperature Ranges
- Operating Temperature Range
- Up to 3050 deg F (1680 deg C)
Processing & Performance Metrics
- Conversion Capability
- Quick conversion between gas and oil by changing the fuel nozzle
- Capacity Range
- S - 1.3 to 2.9 MBtu/h, M - 2.9 to 5.7 MBtu/h, L - 6 to 12 MBtu/h, X - 10 to 24 MBtu/h
- NOx Emissions
- Industry lowest NOx levels; actual results vary by application and staging
Ignition, Flame & Supervision Specifications
- Cooling Requirements
- Clean, dry air or oxygen when not firing (for hot furnace conditions)
- Flame Type
- High aspect ratio flat flame
Installation & Mounting Specifications
- Mounting Options
- NPT Threaded; removable fuel inserts
Material Specifications
- Nozzle Material
- Gas nozzle: 446 Stainless Steel
- Oil nozzle: 446 Stainless Steel
- Burner Material
- 304 Stainless Steel
Performance, Flow & Capacity
- Turndown Ratio
- 3:1 across all sizes
Combustion, Mixing & Fuel Dynamics
- Oxygen Staging
- Adjustable staged oxygen design to optimize heat transfer, flame volume and emissions
- Fuel Flow
- Gas - 36-667 m³/h, Oil - 41-569 liters/h
Burner/Flame‑Related Lengths
- Flame Length
- S: 4-6 ft, M: 5-10 ft, L: 10-14 ft, XL: 13-17 ft (Oil)
Dimensions & Size Specifications
- Burner Sizes
- Small (S), Medium (M), Large (L), Extra Large (X)
Applications & Compatibility
- Applications
- Glass Furnaces, Day Tanks, Incinerators, Metal Melting Furnaces, Reheat Furnaces, Kilns (>1400 deg F / 760 deg C)
Overview
- Burner Type
- Dual-fuel oxygen burner (gas and oil)
Fuel, Gas & Media Specifications
- Fuel Type
- Any clean fuel gas, light fuel oil, heavy fuel oil
- Operating Temperature Range : Up to 3050 deg F (1680 deg C)
- Conversion Capability : Quick conversion between gas and oil by changing the fuel nozzle
- Cooling Requirements : Clean, dry air or oxygen when not firing (for hot furnace conditions)
- Mounting Options : NPT Threaded; removable fuel inserts
- Nozzle Material : Gas nozzle: 446 Stainless Steel|Oil nozzle: 446 Stainless Steel
- Burner Material : 304 Stainless Steel
- Turndown Ratio : 3:1 across all sizes
- Oxygen Staging : Adjustable staged oxygen design to optimize heat transfer, flame volume and emissions
- Capacity Range : S - 1.3 to 2.9 MBtu/h, M - 2.9 to 5.7 MBtu/h, L - 6 to 12 MBtu/h, X - 10 to 24 MBtu/h
- NOx Emissions : Industry lowest NOx levels; actual results vary by application and staging
- Flame Length : S: 4-6 ft, M: 5-10 ft, L: 10-14 ft, XL: 13-17 ft (Oil)
- Burner Sizes : Small (S), Medium (M), Large (L), Extra Large (X)
- Applications : Glass Furnaces, Day Tanks, Incinerators, Metal Melting Furnaces, Reheat Furnaces, Kilns (>1400 deg F / 760 deg C)
- Burner Type : Dual-fuel oxygen burner (gas and oil)
- Flame Type : High aspect ratio flat flame
- Fuel Type : Any clean fuel gas, light fuel oil, heavy fuel oil
- Fuel Flow : Gas - 36-667 m³/h, Oil - 41-569 liters/h
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
50113298-001
SIZE S BLCK
50113298-001
SIZE S BLCK
50113300-001
SIZE L BLCK
50113300-001
SIZE L BLCK
50113301-001
SIZE XL BLCK
50113301-001
SIZE XL BLCK
50114601-001
MDL S NZL HSG ASY
50114601-001
MDL S NZL HSG ASY
50114623-001
MDL M NZL HSG ASY
50114623-001
MDL M NZL HSG ASY
50115725-001
S1 NZL BDY
50115725-001
S1 NZL BDY
50115726-001
S2 NZL BDY
50115726-001
S2 NZL BDY
50115727-001
S3 NZL BDY
50115727-001
S3 NZL BDY
50115728-001
M1 NZL BDY
50115728-001
M1 NZL BDY
50115729-001
M2 NZL BDY
50115729-001
M2 NZL BDY
