Series 600 Pilot Regulators for Pilot operated Gas Pressure Regulators

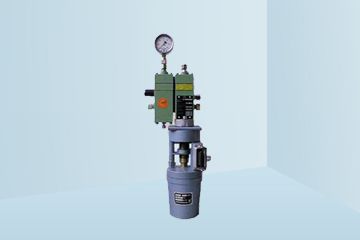

HON 651/656
HON 651 and HON 656 are pneumatic pilots with electric motor for setpoint adjustment. These are used for outlet pressure control.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features and Benefits:
- Pilot with electric setpoint adjuster for lines with changing operational conditions
- For remote setpoint adjustment through central control stations
- Manual setpoint adjustment is possible at the electric motor
- Suitable for natural gas and all non-corrosive gaseous media
- Max. inlet pressure pu max: 100 bar
- Outlet pressure range Wd: 0.5 bar to 90 bar
- Pilot HON 651 combined with electric motor and gearbox connected to the outlet pressure stage according to DIN/ISO 5210 T1 F10
- Max. inlet pressure pu max: 100 bar
- Outlet pressure range Wd: 0.5 bar to 90 bar
- Pilot HON 655 combined with electric motor and gearbox connected to the outlet pressure stage according to DIN/ISO 5210 T1 F10
- During outlet pressure rises the flowrate is limited to a maximal value due to the integrated differential pressure stage
- Details about motors and electrical connections upon request.
