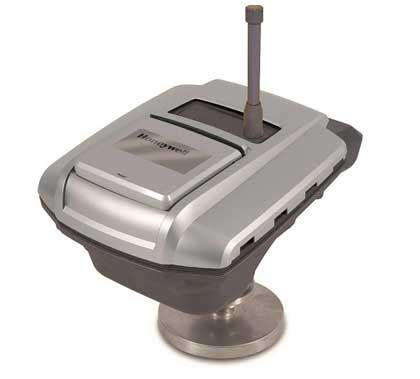

Enraf Flexline Radar 990
Honeywell's Enraf® portfolio of high-end radar and servo tank gauges help in accurate level gauging for refineries, tank terminals and petrochemical industries.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The SmartRadar FlexLine automatic tank gauge (ATG) combines innovative software algorithms with our proven planar antenna technology for the precision you need in custody transfer and inventory applications.
What is It?
Honeywell’s portfolio of radar tank gauges include:
In the most challenging circumstances such as dome roofs and bad stilling wells, SmartRadar FlexLine maintains its ultra-high-performance level on a wide range of applications and various tank conditions. The Enhanced Performance Signal processing enables the radar tank gauge to provide an accurate level reading even in difficult applications (close to the tank shell) and prevents the need for a costly stilling well. The FlexLine radar tank gauge has been certified for use in SIL-2 and SIL-3 applications by the TÜV which allows it to be used in overfill protection applications. Additional diagnostics have been added to detect hardware failures, while a 2004D voting algorithm will detect, report and isolate failures on the boards without interrupting the loading or unloading of a tank.
What Problems Does it Solve?
The FlexLine offers high flexibility that can be used for dedicated tank applications such as independent overfill protection, floating roof monitoring, rim fire detection, roof immersion compensation, etc. The FlexLine wireless option reduces the cost for wiring infrastructure and increases flexibility as various instruments can be added to the network without adding cables. The radar tank gauge is also certified for use in custody transfer applications.
What is It?
Honeywell’s portfolio of radar tank gauges include:
- SmartRadar FlexLine suitable for highly accurate level measurement on large bulk storage tanks.
- SmartRadar FlexLine combines new software algorithms with Honeywell Enraf’s planar antennae technology to provide precision levels demanded for custody transfer accuracy.
- Free Space Antenna portfolio for SmartRadar FlexLine starts from smaller 6” antenna to 8” antenna, designed to address all installation needs on cone roof tanks. The planar antennas for stilling well covers stilling well application ranging from 6’ to 24’ diameter stilling wells.
In the most challenging circumstances such as dome roofs and bad stilling wells, SmartRadar FlexLine maintains its ultra-high-performance level on a wide range of applications and various tank conditions. The Enhanced Performance Signal processing enables the radar tank gauge to provide an accurate level reading even in difficult applications (close to the tank shell) and prevents the need for a costly stilling well. The FlexLine radar tank gauge has been certified for use in SIL-2 and SIL-3 applications by the TÜV which allows it to be used in overfill protection applications. Additional diagnostics have been added to detect hardware failures, while a 2004D voting algorithm will detect, report and isolate failures on the boards without interrupting the loading or unloading of a tank.
What Problems Does it Solve?
The FlexLine offers high flexibility that can be used for dedicated tank applications such as independent overfill protection, floating roof monitoring, rim fire detection, roof immersion compensation, etc. The FlexLine wireless option reduces the cost for wiring infrastructure and increases flexibility as various instruments can be added to the network without adding cables. The radar tank gauge is also certified for use in custody transfer applications.
Specifications
Environmental Conditions
- Ambient Temperature Range
- -40 to +65 deg C (-40 to +149 deg F)
- Storage Temperature Range
- -50 to +75 deg C (-58 to +167 deg F)
- Process Temperature Range
- -200 to +250 deg C (-328 to +482 deg F)
- Measuring Range
- Up to 75 m (246 ft)
- Ingress Protection
- IP66/IP67 (NEMA 4X)
Communication & Protocols
- Wireless Communication
- 2.4 GHz ISM band, DSSS, up to 1800 m (FCC/IC), up to 900 m (EU), integral 4/8 dBi antenna
- Data Communication
- Enraf Fieldbus (BPM), TRL/2, Modbus RTU, HART® Slave-Multidrop/or 4-20 mA, RS-232/RS-485 GPU Protocol, Wireless (ISA100/IEC62734)
Mechanical & Physical Properties
- Wetted Materials
- Ball valve (optional with horn antenna) stainless steel CF8M (mat no.: 1.4408)
- High pressure horn antennas: SS AISI 316 (mat. no.:1.4401) and PTFE (in high pressure tank separator)
- O-rings-FPM (in tank separator)
- Planar (PAT) antennas: SS AISI 316 (mat. no.: 1.4401) and FEP
- Tank separator: Stainless steel AISI 316 (material no.: 1.4401)
- Enclosure
- AA A356 EN1706
- AC-AlSi7Mg0.3
- Cover-Aluminum
- Finish aluminum parts-Hard anodized according to MIL A8625-E Type III
- Instrument housing-Cast aluminum alloy according to EN1706
- O-rings-NBR70
- coating: Polyurethane
I/O Capabilities
- Update Time
- 0.1 sec
- SIL Safety Options
- SIL DO (Digital Output), SIL AO (Analog Output)-NAMUR NE43 Compliant
- Inputs
- VITO Temperature/Water Probe, Spot RTD (3 wire or 4 wire RTD, one or 2 element),(MPT/MRT up to 6 elements), HART® Inputs
- Functional Safety Approvals
- SIL certification-TÜV certified for SIL 2 (single configuration, HFT= 0) and SIL 3 (redundant configuration, HFT=1), according to IEC 61508 & IEC 61511Overfill protection-DIBt WHG, Corcon BVBA
- Explosion Safety Approvals
- Class I, Division 1, Groups C & D, acc. to CSA
- Class I, Division 1, Groups C & D, acc. to FM
- Ex d [ia Ga] IIB T6 Ga/Gb, acc. to IECEx KEMA
- Ex d [ia Ga] IIB T6 Ga/Gb, acc. to INMETRO TÜV
- Ex d ia IIB T6, acc. to Kosha certificate
- II 1/2 G Ex d [ia Ga] IIB T6 Ga/Gb, acc. to ATEX KEMA
- Other approvals/certificates-Explosion proof: NEPSI, PESO (India), GOST-Rx
Electrical Specifications
- Power Supply
- Auto select 65 Vac to 240 Vac (+10% to -15%) 50/60 Hz and/or 24 Vdc to 65 Vdc (+10% to -15%), Power rating:-Typical 15 W; max. 23 W with all options
Processing & Performance Metrics
- Measuring Resolution
- 0.1 mm (0.001 in)
- Instrument Accuracy Level
- Advanced performance SmartRadar ±3 mm (±0.12 in)
- High performance SmartRadar ±1 mm (±0.04 in)
- Xtreme performance SmartRadar ±0.4 mm (±0.016 in)
Measurement & Sensor Related (Measurement Capabilities)
- Measuring Principle
- FMCW/Synthesized Reflectometer
Technical Specifications
- Maximum Process Pressure
- Horn Antennas: up to 40 bar/4 MPa (580 psi)
- Planar (PAT) Antennas: up to 6 bar/0.6 MPa (87 psi)
Standards & Certifications
- Legal Metrology Approvals
- NMi, PTB, BRML, UMI, LNE, DZM, ONML, W&M India, PAC, MIGAS, OIML, and several others. (Please check with factory for availability of local certificates with selected options.)
Software & Interface
- Display
- Integrated and/or Remote SmartView Display
Dimensions & Weight
- Dimensions
- 217 mm H x 319 mm W x 379 mm L (8.55 in H x 12.55 in W x 14.9 in L)
Network & Connectivity Infrastructure
- Cable Entries
- 3 x 3/4 in NPT Exd/XP or 6 x M20 EExe
