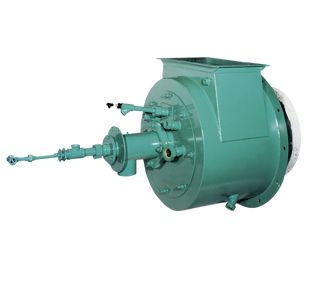

Vortometric
Burner with Rugged Dependability producing High outputs with low air pressures
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Vortometric burners are built to fire light and heavy fuel oils and almost any industrial gas, including propane, butane manufactured and mixed gases, to extremely high outputs. They feature a high combustion air swirl rate that produces a stable flame with high turndown capabilities and low levels of NOx and CO emissions.
Features & Benefits:
Features & Benefits:
- High turndown capabilities on a wide range of fuels result from the stable flame produced by the air swirl rate
- Clean, smoke-free combustion results from the unique “vortex generator” which vaporizes fuel oils
- Low NOx and CO emissions
- Rugged heavy gauge steel windbox and volute assemblies provide durability
- Operates with low excess air for maximum efficiency or high excess air for high volume process air heating.
- Single wall alloy, air-cooled alloy, and refractory versions available
- Standard firing arrangement is horizontal but can be fired vertically with additional gas lance support rods
- Available as packaged units including valve trains, combustion air blowers, flame supervision and controls
Specifications
Air & Combustion Air Specifications
- Air Inlet Design
- Requires straight ducting; velocity variation ≤ ±20%
- Preheated Air Limits
- Max 500 deg F; MI requires burner upsizing above 250 deg F
- Combustion Air Swirl
- High swirl for stable flame, high turndown, low NOₓ and CO emissions
Processing & Performance Metrics
- Turndown Capability
- High turndown
- Capacity Range
- 6,000,000 to 210,000,000 BTU/h (1,760 to 61,500 kW)
Connections & Interfaces
- Pipe Connection Type
- NPT, BSP; ANSI or DIN flange for sizes 16V and above
Dimensions & Size Specifications
- Number of Sizes
- 12 sizes per series
Overview
- Models
- MI (Medium Intensity), HI (High Intensity)
Combustion/Furnace/Chamber Temperatures
- Maximum Combustor Temperature
- HI: Up to 2200 deg F (1204 deg C)
- MI: 1200 to 2200 deg F (depending on combustor type)
- Combustion Air Temperature Range
- 500 deg F
Actuation, Valve & Motion Control Specifications
- Main Gas Shut-Off Valve Train
- Must comply with NFPA/EN; minimum two shut-off valves
Installation & Mounting Specifications
- Installation Orientation
- Horizontal or vertical (including vertical down)
Ignition, Flame & Supervision Specifications
- Ignition Type
- Raw gas pilot with spark rod
- Flame Sensor
- UV Scanner (standard); IR Scanner (for oil/high CO); Dual Scanners for steam atomized oil
Performance, Flow & Capacity
- Heat Input Range
- 1,760 to 61,500 kW
Combustion, Fuel & Mixing Sub‑Systems
- Gas Inlet Orientation
- 0 deg , 90 deg , 180 deg , 270 deg positions
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas, Propane, Butane, Fuel Oil (#2, #6), Bio-gas, Hydrogen, Alcohol, etc.
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- High‑swirl combustion air
Product Design & Configuration
- Burner Series
- Vortometric
Standards & Certifications
- Approvals
- NFPA and EN compliance for safety systems
- UL, FM, CSA, CGA, CE (for approved valves/switches)
Applications & Compatibility
- Applications
- Dryers, Ovens, Kilns, Thermal Oxidizers, Boilers, Incinerators
Air & Combustion Air Specifications
- Air Inlet Design
- Requires straight ducting; velocity variation ≤ ±20%
- Preheated Air Limits
- Max 500 deg F; MI requires burner upsizing above 250 deg F
- Combustion Air Swirl
- High swirl for stable flame, high turndown, low NOₓ and CO emissions
Processing & Performance Metrics
- Turndown Capability
- High turndown
- Capacity Range
- 6,000,000 to 210,000,000 BTU/h (1,760 to 61,500 kW)
Connections & Interfaces
- Pipe Connection Type
- NPT, BSP; ANSI or DIN flange for sizes 16V and above
Dimensions & Size Specifications
- Number of Sizes
- 12 sizes per series
Overview
- Models
- MI (Medium Intensity), HI (High Intensity)
Combustion/Furnace/Chamber Temperatures
- Maximum Combustor Temperature
- HI: Up to 2200 deg F (1204 deg C)
- MI: 1200 to 2200 deg F (depending on combustor type)
- Combustion Air Temperature Range
- 500 deg F
Actuation, Valve & Motion Control Specifications
- Main Gas Shut-Off Valve Train
- Must comply with NFPA/EN; minimum two shut-off valves
Installation & Mounting Specifications
- Installation Orientation
- Horizontal or vertical (including vertical down)
Ignition, Flame & Supervision Specifications
- Ignition Type
- Raw gas pilot with spark rod
- Flame Sensor
- UV Scanner (standard); IR Scanner (for oil/high CO); Dual Scanners for steam atomized oil
Performance, Flow & Capacity
- Heat Input Range
- 1,760 to 61,500 kW
Combustion, Fuel & Mixing Sub‑Systems
- Gas Inlet Orientation
- 0 deg , 90 deg , 180 deg , 270 deg positions
Fuel, Gas & Media Specifications
- Fuel Type
- Natural Gas, Propane, Butane, Fuel Oil (#2, #6), Bio-gas, Hydrogen, Alcohol, etc.
Combustion, Mixing & Fuel Dynamics
- Combustion Principle
- High‑swirl combustion air
Product Design & Configuration
- Burner Series
- Vortometric
Standards & Certifications
- Approvals
- NFPA and EN compliance for safety systems
- UL, FM, CSA, CGA, CE (for approved valves/switches)
Applications & Compatibility
- Applications
- Dryers, Ovens, Kilns, Thermal Oxidizers, Boilers, Incinerators
- Air Inlet Design : Requires straight ducting; velocity variation ≤ ±20%
- Turndown Capability : High turndown
- Preheated Air Limits : Max 500 deg F; MI requires burner upsizing above 250 deg F
- Pipe Connection Type : NPT, BSP; ANSI or DIN flange for sizes 16V and above
- Number of Sizes : 12 sizes per series
- Models : MI (Medium Intensity), HI (High Intensity)
- Maximum Combustor Temperature : HI: Up to 2200 deg F (1204 deg C)|MI: 1200 to 2200 deg F (depending on combustor type)
- Main Gas Shut-Off Valve Train : Must comply with NFPA/EN; minimum two shut-off valves
- Installation Orientation : Horizontal or vertical (including vertical down)
- Ignition Type : Raw gas pilot with spark rod
- Heat Input Range : 1,760 to 61,500 kW
- Gas Inlet Orientation : 0 deg , 90 deg , 180 deg , 270 deg positions
- Fuel Type : Natural Gas, Propane, Butane, Fuel Oil (#2, #6), Bio-gas, Hydrogen, Alcohol, etc.
- Flame Sensor : UV Scanner (standard); IR Scanner (for oil/high CO); Dual Scanners for steam atomized oil
- Combustion Principle : High‑swirl combustion air
- Combustion Air Temperature Range : 500 deg F
- Combustion Air Swirl : High swirl for stable flame, high turndown, low NOₓ and CO emissions
- Capacity Range : 6,000,000 to 210,000,000 BTU/h (1,760 to 61,500 kW)
- Burner Series : Vortometric
- Approvals : NFPA and EN compliance for safety systems|UL, FM, CSA, CGA, CE (for approved valves/switches)
- Applications : Dryers, Ovens, Kilns, Thermal Oxidizers, Boilers, Incinerators
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
00.4100152.16
AH-SF 80 compl new generation Position I
00.4100152.16
AH-SF 80 compl new generation Position I
00.4100511.26
RAH 80 compl new generation Position II
00.4100511.26
RAH 80 compl new generation Position II
10027022
NZL,LNC,OIL,VM,32V
10027022
NZL,LNC,OIL,VM,32V
10027023
CONE,NOSE,LNC,OIL,VM,32V
10027023
CONE,NOSE,LNC,OIL,VM,32V
10027082
RING,ASY,INLT,LNC,OIL,VM,32V,36V
10027082
RING,ASY,INLT,LNC,OIL,VM,32V,36V
10027085
ATMZR,LNC,OIL,VM,32V,CW
10027085
ATMZR,LNC,OIL,VM,32V,CW
10035205
BDY,TIP,NZL,OIL,VM,14V
10035205
BDY,TIP,NZL,OIL,VM,14V
10035206
TIP,NZL,LNC,OIL,VM,14V
10035206
TIP,NZL,LNC,OIL,VM,14V
10035207
BDY,TIP,NZL,OIL,VM,16V
10035207
BDY,TIP,NZL,OIL,VM,16V
10035208
TIP,NZL,LNC,OIL,VM,16V
10035208
TIP,NZL,LNC,OIL,VM,16V
