Ultraviolet Flame Detector C7915
Infrared Flame Sensor
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

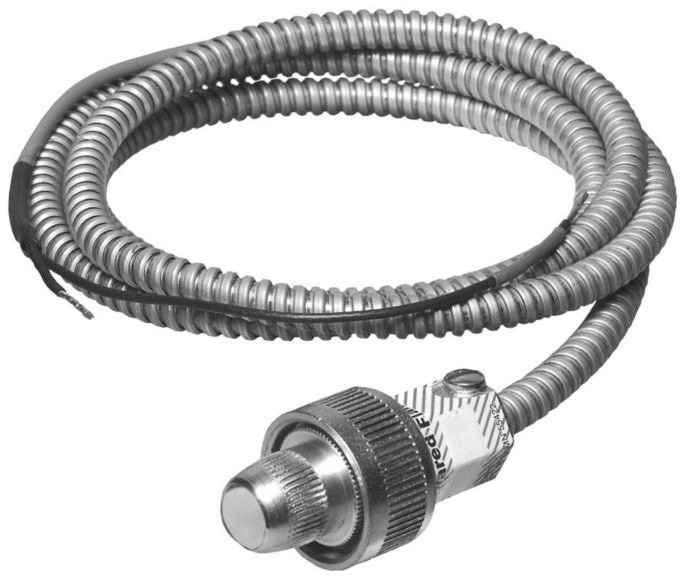

The C7915 Flame Sensor includes a lead sulfide photocell that is sensitive to the infrared radiation emitted by the combustion of fuels such as natural gas, oil, and coal.
Features & Benefits:
Features & Benefits:
- Used for combination or dual-fuel applications
- Detects pilot and main flame
- Mounts quickly and easily on a standard 3/4 in. sighting pipe
- Works where flame rod or rectifying photocell mounts are difficult to apply
- The C7015 includes 110634A Bushing with magnifying lens
- The C7015 uses photoconductive lead sulfide cells 104662B and D
- The C7915 includes 50019469-001 Bushing with magnifying lens
- The C7915 uses photoconductive lead sulfide cells 32007255-001
Specifications
Environmental Conditions
- Ambient Temperature Range
- -40 to 125 deg F (-40 to 52 deg C)
Measurement, Accuracy & Sensing
- Field of View Control
- Orifice plate (0.125 in. hexagonal), sight pipe length/diameter
- Sensor Type
- Lead sulfide photocell (field-replaceable)
Applications & Compatibility
- Compatible Amplifiers
- R7852A, R7852B (AMPLI-CHECK™)
- Compatible Controls
- RM7800 series, RM7823, RM7838, RM7840, RM7885, RM7890, RM7895, RM7896, RM7897, RM7898, R7140[1]
Installation & Mounting Specifications
- Mounting Options
- 3/4-14 NPSM internal threads; mounts on standard 3/4 in sight pipe
Processing & Performance Metrics
- Detection Range
- Infrared radiation between 0.75 and 1.0 microns
Inputs, Outputs & Signal Interfaces
- Signal Output
- 1.25 to 5.0 VDC (with R7852 amplifier)
- 1.4 to 5.5 µA (nominal)
Mechanical Design & Hardware Details
- Cable Rating
- 194 deg F (90 deg C), max cable length: 50 ft (15.2 m)
- Cable Type
- 30, 48, or 96 in coaxial cable in flexible metal conduit
Ignition, Flame & Supervision Specifications
- Flame Type
- Natural Gas, oil, coal, dual-fuel
Standards & Certifications
- Approvals
- SIL 3 Capable, FM Approved, Swiss Re (Industrial Risk Insurers), WEEE Directive 2012/19/EU - proper disposal required
Environmental Conditions
- Ambient Temperature Range
- -40 to 125 deg F (-40 to 52 deg C)
Measurement, Accuracy & Sensing
- Field of View Control
- Orifice plate (0.125 in. hexagonal), sight pipe length/diameter
- Sensor Type
- Lead sulfide photocell (field-replaceable)
Applications & Compatibility
- Compatible Amplifiers
- R7852A, R7852B (AMPLI-CHECK™)
- Compatible Controls
- RM7800 series, RM7823, RM7838, RM7840, RM7885, RM7890, RM7895, RM7896, RM7897, RM7898, R7140[1]
Installation & Mounting Specifications
- Mounting Options
- 3/4-14 NPSM internal threads; mounts on standard 3/4 in sight pipe
Processing & Performance Metrics
- Detection Range
- Infrared radiation between 0.75 and 1.0 microns
Inputs, Outputs & Signal Interfaces
- Signal Output
- 1.25 to 5.0 VDC (with R7852 amplifier)
- 1.4 to 5.5 µA (nominal)
Mechanical Design & Hardware Details
- Cable Rating
- 194 deg F (90 deg C), max cable length: 50 ft (15.2 m)
- Cable Type
- 30, 48, or 96 in coaxial cable in flexible metal conduit
Ignition, Flame & Supervision Specifications
- Flame Type
- Natural Gas, oil, coal, dual-fuel
Standards & Certifications
- Approvals
- SIL 3 Capable, FM Approved, Swiss Re (Industrial Risk Insurers), WEEE Directive 2012/19/EU - proper disposal required
- Ambient Temperature Range : -40 to 125 deg F (-40 to 52 deg C)
- Field of View Control : Orifice plate (0.125 in. hexagonal), sight pipe length/diameter
- Compatible Amplifiers : R7852A, R7852B (AMPLI-CHECK™)
- Compatible Controls : RM7800 series, RM7823, RM7838, RM7840, RM7885, RM7890, RM7895, RM7896, RM7897, RM7898, R7140[1]
- Mounting Options : 3/4-14 NPSM internal threads; mounts on standard 3/4 in sight pipe
- Detection Range : Infrared radiation between 0.75 and 1.0 microns
- Signal Output : 1.25 to 5.0 VDC (with R7852 amplifier)|1.4 to 5.5 µA (nominal)
- Cable Rating : 194 deg F (90 deg C), max cable length: 50 ft (15.2 m)
- Sensor Type : Lead sulfide photocell (field-replaceable)
- Flame Type : Natural Gas, oil, coal, dual-fuel
- Cable Type : 30, 48, or 96 in coaxial cable in flexible metal conduit
- Approvals : SIL 3 Capable, FM Approved, Swiss Re (Industrial Risk Insurers), WEEE Directive 2012/19/EU - proper disposal required
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
C7915A1010/U
IR FLAME SENSOR
C7915A1010/U
IR FLAME SENSOR
C7915A1028/U
IR FLAME SENSOR
C7915A1028/U
IR FLAME SENSOR
C7915A1036/U
IR FLAME SENSOR
C7915A1036/U
IR FLAME SENSOR
C7915A1044/U
IR DETECTOR
C7915A1044/U
IR DETECTOR
