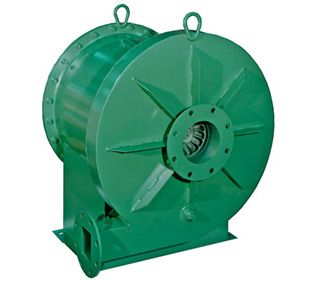

Hermetic Booster
Highly reliable, gas booster to help increase gas pressure when the supply pressure is not high enough. It is hermetically sealed and can handle a variety of different gases, including biogas.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Eclipse Hermetic Boosters are used to increase the pressure of any gas or air/gas mixture not corrosive to aluminum or steel. They deliver gas at any volume within the capacity range of the booster with a relatively constant pressure. These boosters are UL listed when handling natural or manufactured gases. [The discharge pressure is the total of the booster added pressure plus incoming gas pressure.]The Hermetic Booster's design is unique because its premium efficiency motor and rotor are enclosed in an airtight steel housing. No shaft seal is required, which eliminates the possibility of shaft seal leakage. Sealed electrical connections are made through an explosion-proof conduit, and an explosion proof junction box is also included. Standard shaft Class 1, Group D explosion -proof motors are standard.
Features & Benefits:
Features & Benefits:
- Eclipse has been producing gas boosters for over 80 years. This experience has led to a design with a proven history of many installations with a long reliable operational life
- The hermetic design eliminates the maintenance and wear problems of a shaft seal
- The flat radial blades of the centrifugal rotor avoid dirt and particle accumulation
- The motor and rotor can be easily removed without disturbing the piping
Specifications
Applications & Compatibility
- Applications
- Combustion systems requiring added gas pressure or flow stability
- Increase gas pressure and flow for combustion systems
- Gas Compatibility
- BS - Air, Natural Gas, Manufactured Gas, Propane/Air, Class I Group D non‑corrosive gases
- DG - Digester gas, bio‑gas, landfill gas, sour gas
Performance, Flow & Capacity
- Turndown Ratio
- HB‑LC‑3316‑3/4 supports up to 50:1 turndown
- Minimum Flow Rate
- 1000 CFH (<17 in wc) or 2500 CFH (>17 in wc) litre per hour
Product Overview & Classification
- Product Variants
- BS (Standard series), DG (Digester Gas series)
- Product Series
- HB (Standard and Digester Gas variants)
Overview
- Product Category
- Gas Pressure Booster/Blower
- Design Type
- Hermetically sealed booster with internal rotor and motor
Actuation, Valve & Motion Control Specifications
- Outlet Positions
- 4 outlet positions, rotation CW/CCW
- Standard = Position #1 CCW
Connections & Interfaces
- Outlet Connection
- NPT for smaller units; ANSI 125/150 flanges for larger units
- Inlet Connection
- NPT for models 3412, 4412, 3314, 4414; others ANSI 125/150 flanges
Operating/Process Temperature Ranges
- Operating Gas Temperature
- 95 deg F (35 deg C)
Motor Specifications
- Motor Type
- Explosion‑proof motor, Class I Group D, fan‑cooled
Electrical Specifications
- Motor Power Range
- 0.5 to 20 HP (model‑dependent)
- Frequency
- 60 Hz (other options by factory request)
Pressure Specifications
- Maximum Pressure
- 5 psig (344 mbar) for inlet/outlet/test pressure
Material Specifications
- Housing Material
- Steel Housing with Powder‑Coated Finish
Environmental Conditions
- Environmental Requirement
- Ventilation, avoid sunlight/radiant heat
Standards & Certifications
- Approvals
- UL Listed (MH10098), Massachusetts Board approval
Applications & Compatibility
- Applications
- Combustion systems requiring added gas pressure or flow stability
- Increase gas pressure and flow for combustion systems
- Gas Compatibility
- BS - Air, Natural Gas, Manufactured Gas, Propane/Air, Class I Group D non‑corrosive gases
- DG - Digester gas, bio‑gas, landfill gas, sour gas
Performance, Flow & Capacity
- Turndown Ratio
- HB‑LC‑3316‑3/4 supports up to 50:1 turndown
- Minimum Flow Rate
- 1000 CFH (<17 in wc) or 2500 CFH (>17 in wc) litre per hour
Product Overview & Classification
- Product Variants
- BS (Standard series), DG (Digester Gas series)
- Product Series
- HB (Standard and Digester Gas variants)
Overview
- Product Category
- Gas Pressure Booster/Blower
- Design Type
- Hermetically sealed booster with internal rotor and motor
Actuation, Valve & Motion Control Specifications
- Outlet Positions
- 4 outlet positions, rotation CW/CCW
- Standard = Position #1 CCW
Connections & Interfaces
- Outlet Connection
- NPT for smaller units; ANSI 125/150 flanges for larger units
- Inlet Connection
- NPT for models 3412, 4412, 3314, 4414; others ANSI 125/150 flanges
Operating/Process Temperature Ranges
- Operating Gas Temperature
- 95 deg F (35 deg C)
Motor Specifications
- Motor Type
- Explosion‑proof motor, Class I Group D, fan‑cooled
Electrical Specifications
- Motor Power Range
- 0.5 to 20 HP (model‑dependent)
- Frequency
- 60 Hz (other options by factory request)
Pressure Specifications
- Maximum Pressure
- 5 psig (344 mbar) for inlet/outlet/test pressure
Material Specifications
- Housing Material
- Steel Housing with Powder‑Coated Finish
Environmental Conditions
- Environmental Requirement
- Ventilation, avoid sunlight/radiant heat
Standards & Certifications
- Approvals
- UL Listed (MH10098), Massachusetts Board approval
- Applications : Combustion systems requiring added gas pressure or flow stability|Increase gas pressure and flow for combustion systems
- Turndown Ratio : HB‑LC‑3316‑3/4 supports up to 50:1 turndown
- Product Variants : BS (Standard series), DG (Digester Gas series)
- Product Series : HB (Standard and Digester Gas variants)
- Product Category : Gas Pressure Booster/Blower
- Outlet Positions : 4 outlet positions, rotation CW/CCW|Standard = Position #1 CCW
- Outlet Connection : NPT for smaller units; ANSI 125/150 flanges for larger units
- Operating Gas Temperature : 95 deg F (35 deg C)
- Motor Type : Explosion‑proof motor, Class I Group D, fan‑cooled
- Motor Power Range : 0.5 to 20 HP (model‑dependent)
- Minimum Flow Rate : 1000 CFH (<17 in wc) or 2500 CFH (>17 in wc) litre per hour
- Maximum Pressure : 5 psig (344 mbar) for inlet/outlet/test pressure
- Inlet Connection : NPT for models 3412, 4412, 3314, 4414; others ANSI 125/150 flanges
- Housing Material : Steel Housing with Powder‑Coated Finish
- Gas Compatibility : BS - Air, Natural Gas, Manufactured Gas, Propane/Air, Class I Group D non‑corrosive gases|DG - Digester gas, bio‑gas, landfill gas, sour gas
- Frequency : 60 Hz (other options by factory request)
- Environmental Requirement : Ventilation, avoid sunlight/radiant heat
- Design Type : Hermetically sealed booster with internal rotor and motor
- Approvals : UL Listed (MH10098), Massachusetts Board approval
