Medium Pressure Regulators up to PN16 (ANSI 150)

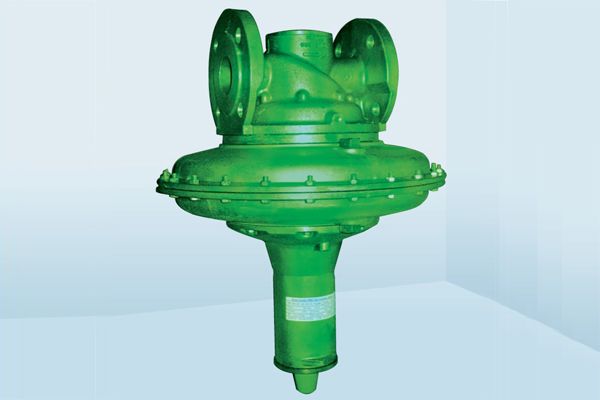

HON 226 ZSO

HON 226 ZS0, a gas pressure regulator used for maintaining zero pressure in gas regulating lines. The spring-loaded gas pressure regulator offers a high level of accuracy in regulating gas

Overview
Features and Benefits:
  • Bubble-tight shut-off
  • Inlet pressure compensation
  • High regulating accuracy
  • Optional internal and external measuring impulse connections
  • Horizontal mounting position with springloaded pin downwards
  • Setpoint may be adjusted from external device
  • Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases upon enquiry
  • CE registration according to GAD
  • Max. inlet pressure pu max: up to 0.5 bar
  • Outlet pressure range Wd:  0.002 to +0.002 bar
  • Connection: DIN flange PN16 for pipe size: DN 50, DN 65, DN 80, DN 100, DN 150
  • Temperature range: -20 to 60 °C
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements
