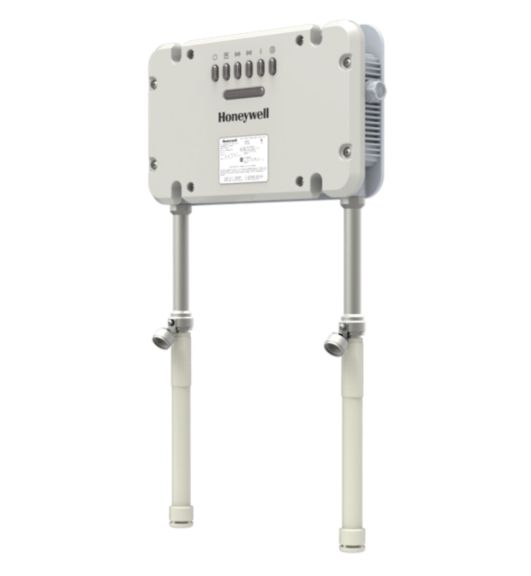

Field Device Access Point Gen3 Plus

The FDAP Gen3 Plus is an industrial meshing access point providing secure and reliable wireless coverage for ISA100 Wireless and/or WirelessHART field instruments and is intended for use with the Cisco Industrial IW6300 Heavy Duty Access Point

Overview
The OneWireless Field Device Access Point Gen 3 Plus (FDAP Gen3 Plus) is part of the FDAP Gen3 Series and is used to perform a field retrofit with a Cisco IW6300 Heavy Duty Access Point.  The FDAP Gen3 Plus enables the ability to concurrently support ISA100 Wireless and WirelessHART devices in conjunction with the Wi-Fi connectivity offered by a Cisco IW6300 Heavy Duty AP.

The FDAP Gen3 Plus is an industrial meshing access point for ISA100 Wireless and WirelessHART field instruments. It delivers an 802.15.4 radio designated specifically for mission-critical wireless connectivity to industrial sensor equipment communicating using the ISA100 Wireless and WirelessHART standards. ​
Specifications

Dimensions & Weight

  • Dimensions
    • 11.4 x 6.4 x 2.2 in
    • 290 x 183 x 56 mm
  • Weight
    • 2 kg
    • 4.6 lb

Communication & Protocols

  • Ports
    • 1X 10/100 Mbps Ethernet Port (Auto-Negotiation)
    • 1X Grounding Cable
    • 2X External Antenna Ports (2.4 GHz)
  • Receiver Sensitivity
    • -100 dBm @ 250 kbps
  • Field Protocols
    • ISA100 Wireless (IEC 62734)
    • WirelessHART (IEC 62591)
  • Network Hops
    • 4 hops
  • Data Rate
    • BLE: 1 Mbps (FHSS/FSK)
    • ISA100: 250 Kbps (DSSS/O-QPSK)
    • Wired: 10/100 Mbps

Device & Network Capacity

  • Number of Supported Enraf FlexLine Radar Gauges/WFI
    • 13 Enraf FlexLine/WFI

Environmental Conditions

  • Operating Temperature
    • -40 to +70 deg C
  • Corrosion Resistance
    • G3 per ANSI/ISA-S71.04-1985
  • Humidity
    • 0 to 95% RH, Non-Condensing
  • Shock
    • 15G Non-Operational
    • 4G–5G Operational

Network & Connectivity Infrastructure

  • Quality of Service
    • Supported

Standards & Certifications

  • Ingress Protection
    • IP66/IP67
  • Standards
    • CE
    • CSA: Class I, Division 2, Group A,B,C,D
    • ETSI
    • FCC
    • IC
    • IEC61326-1
    • Radio Approval
    • T4 Environment Hazardous, Class 1, Div 2/Zone 2 Hazardous Location

Electrical Specifications

  • Transmit Power
    • Max 18 dBm
  • Frequency Band
    • 2.4 to 2.483 GHz (ISM Band)
  • Power
    • Power over Ethernet (PoE) at 5 W

I/O Capabilities

  • Authentication
    • Over-The-Air and BLE-Based Key Distribution
  • Encryption
    • 128-bit AES

Overview

  • Series
    • OneWireless™
  • Models
    • FDAP3P (Class 1 Div 2/Zone 2)

Dimensions & Weight

  • Dimensions
    • 11.4 x 6.4 x 2.2 in
    • 290 x 183 x 56 mm
  • Weight
    • 2 kg
    • 4.6 lb

Communication & Protocols

  • Ports
    • 1X 10/100 Mbps Ethernet Port (Auto-Negotiation)
    • 1X Grounding Cable
    • 2X External Antenna Ports (2.4 GHz)
  • Receiver Sensitivity
    • -100 dBm @ 250 kbps
  • Field Protocols
    • ISA100 Wireless (IEC 62734)
    • WirelessHART (IEC 62591)
  • Network Hops
    • 4 hops
  • Data Rate
    • BLE: 1 Mbps (FHSS/FSK)
    • ISA100: 250 Kbps (DSSS/O-QPSK)
    • Wired: 10/100 Mbps

Device & Network Capacity

  • Number of Supported Enraf FlexLine Radar Gauges/WFI
    • 13 Enraf FlexLine/WFI

Environmental Conditions

  • Operating Temperature
    • -40 to +70 deg C
  • Corrosion Resistance
    • G3 per ANSI/ISA-S71.04-1985
  • Humidity
    • 0 to 95% RH, Non-Condensing
  • Shock
    • 15G Non-Operational
    • 4G–5G Operational

Network & Connectivity Infrastructure

  • Quality of Service
    • Supported

Standards & Certifications

  • Ingress Protection
    • IP66/IP67
  • Standards
    • CE
    • CSA: Class I, Division 2, Group A,B,C,D
    • ETSI
    • FCC
    • IC
    • IEC61326-1
    • Radio Approval
    • T4 Environment Hazardous, Class 1, Div 2/Zone 2 Hazardous Location

Electrical Specifications

  • Transmit Power
    • Max 18 dBm
  • Frequency Band
    • 2.4 to 2.483 GHz (ISM Band)
  • Power
    • Power over Ethernet (PoE) at 5 W

I/O Capabilities

  • Authentication
    • Over-The-Air and BLE-Based Key Distribution
  • Encryption
    • 128-bit AES

Overview

  • Series
    • OneWireless™
  • Models
    • FDAP3P (Class 1 Div 2/Zone 2)
  • Dimensions : 11.4 x 6.4 x 2.2 in|290 x 183 x 56 mm
  • Weight : 2 kg|4.6 lb
  • Ports : 1X 10/100 Mbps Ethernet Port (Auto-Negotiation)|1X Grounding Cable|2X External Antenna Ports (2.4 GHz)
  • Number of Supported Enraf FlexLine Radar Gauges/WFI : 13 Enraf FlexLine/WFI
  • Operating Temperature : -40 to +70 deg C
  • Receiver Sensitivity : -100 dBm @ 250 kbps
  • Corrosion Resistance : G3 per ANSI/ISA-S71.04-1985
  • Quality of Service : Supported
  • Ingress Protection : IP66/IP67
  • Field Protocols : ISA100 Wireless (IEC 62734)|WirelessHART (IEC 62591)
  • Transmit Power : Max 18 dBm
  • Frequency Band : 2.4 to 2.483 GHz (ISM Band)
  • Authentication : Over-The-Air and BLE-Based Key Distribution
  • Network Hops : 4 hops
  • Encryption : 128-bit AES
  • Standards : CE|CSA: Class I, Division 2, Group A,B,C,D|ETSI|FCC|IC|IEC61326-1|Radio Approval|T4 Environment Hazardous, Class 1, Div 2/Zone 2 Hazardous Location
  • Data Rate : BLE: 1 Mbps (FHSS/FSK)|ISA100: 250 Kbps (DSSS/O-QPSK)|Wired: 10/100 Mbps
  • Humidity : 0 to 95% RH, Non-Condensing
  • Series : OneWireless™
  • Models : FDAP3P (Class 1 Div 2/Zone 2)
  • Shock : 15G Non-Operational|4G–5G Operational
  • Power : Power over Ethernet (PoE) at 5 W
