OXY-THERM TITAN
High capacity, oxygen fueled furnace burner ideal for down fired mounting applications such as ladle pre-preheating as well as rotary melters, incinerators, and other process heaters.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview

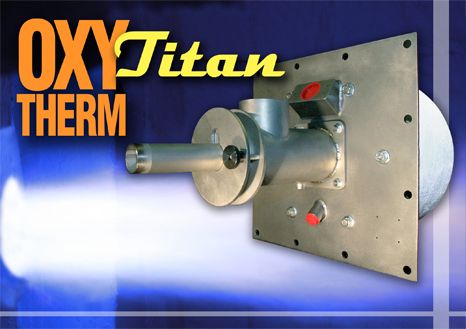

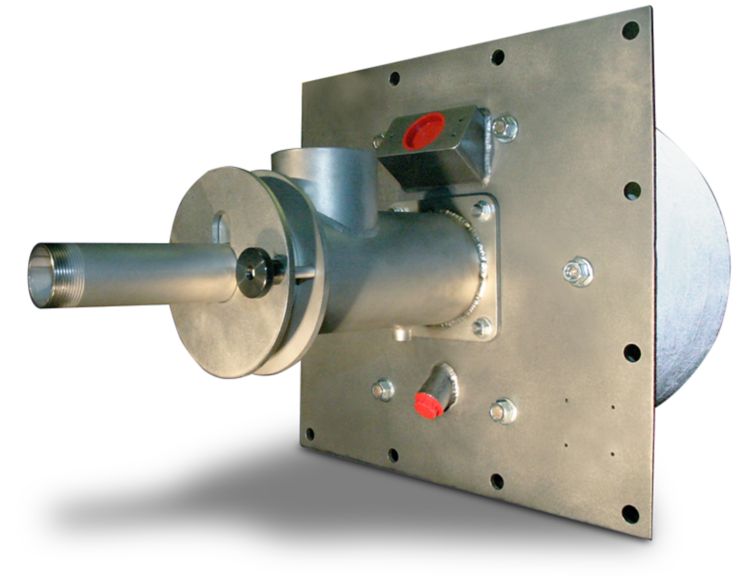

The OXY-THERM® TITAN™ burner provides a more compact flame profile than other OXY-THERM® burners. Oxygen enters the burner housing and exits around the fuel nozzle where it mixes with the fuel. The oxygen-fuel flame discharges through the refractory block throat and develops a tightly wrapped compact flame pattern.Its flame length and mounting design make the OXY-THERM® TITAN™ ideal for applications requiring higher capacities in vertical fired applications requiring a “down-fired” mounting such as ladle preheating. It is also an excellent burner for rotary melters, waste incinerators and process heaters.
Features & Benefits:
Features & Benefits:
- High temperature oxy-fuel flame reduces consumption
- Sealed, self-cooling design minimizes air infiltration and maintenance
- Wide variety of capacities and large turdown ratio (8:1) provide precise process temperature control
- Compact flame geometry for easy integration in most processes
- Typical applications include ladle heating, reheat furnaces, rotary hearths, forge furnaces, reaction furnaces, and any high temperature, sealed process
Specifications
Applications & Compatibility
- Applications
- Ladle heating, reheat furnaces, rotary hearths, forge furnaces, reaction furnaces, waste incinerators, high-temp sealed processes
Performance, Flow & Capacity
- Turndown Ratio
- 8:1
Operating/Process Temperature Ranges
- Process Temperature Range
- Up to 3000 deg F (1649 deg C) with standard block
Combustion, Fuel & Mixing Sub‑Systems
- Pilot Options
- Air pilot; Oxy-fuel pilot
Material Specifications
- Nozzle Material
- 310 Stainless Steel
- Burner Material
- 304 Stainless Steel
- Block Material
- Alumina/Mullite refractory
Installation & Mounting Specifications
- Mounting Options
- Vertical/down-fired capable, door-mounted, flange/block design
Fuel, Gas & Media Specifications
- Fuel Type
- Any fuel gas, including up to 20% hydrogen/80% natural gas blend
Ignition, Flame & Supervision Specifications
- Flame Supervision
- Flame rod not available
- Provision for UV scanner via 3/4 in NPT port
- Cooling Requirements
- Provide small cooling flow (clean, dry air or oxygen) whenever hot and not firing
Processing & Performance Metrics
- Emissions
- Exact performance varies by application; consult Honeywell Maxon
- Capacity Range
- 1-1/2 in: 2 to 12 MBTU/h (529 to 3173 kW)
- 2 in: 10-30 MBTU/h (2644 to 7932 kW)(Gas)
Overview
- Burner Type
- Compact flame oxygen-fuel burner
Dimensions & Size Specifications
- Burner Sizes
- 1-1/2 and 2 in
Applications & Compatibility
- Applications
- Ladle heating, reheat furnaces, rotary hearths, forge furnaces, reaction furnaces, waste incinerators, high-temp sealed processes
Performance, Flow & Capacity
- Turndown Ratio
- 8:1
Operating/Process Temperature Ranges
- Process Temperature Range
- Up to 3000 deg F (1649 deg C) with standard block
Combustion, Fuel & Mixing Sub‑Systems
- Pilot Options
- Air pilot; Oxy-fuel pilot
Material Specifications
- Nozzle Material
- 310 Stainless Steel
- Burner Material
- 304 Stainless Steel
- Block Material
- Alumina/Mullite refractory
Installation & Mounting Specifications
- Mounting Options
- Vertical/down-fired capable, door-mounted, flange/block design
Fuel, Gas & Media Specifications
- Fuel Type
- Any fuel gas, including up to 20% hydrogen/80% natural gas blend
Ignition, Flame & Supervision Specifications
- Flame Supervision
- Flame rod not available
- Provision for UV scanner via 3/4 in NPT port
- Cooling Requirements
- Provide small cooling flow (clean, dry air or oxygen) whenever hot and not firing
Processing & Performance Metrics
- Emissions
- Exact performance varies by application; consult Honeywell Maxon
- Capacity Range
- 1-1/2 in: 2 to 12 MBTU/h (529 to 3173 kW)
- 2 in: 10-30 MBTU/h (2644 to 7932 kW)(Gas)
Overview
- Burner Type
- Compact flame oxygen-fuel burner
Dimensions & Size Specifications
- Burner Sizes
- 1-1/2 and 2 in
- Applications : Ladle heating, reheat furnaces, rotary hearths, forge furnaces, reaction furnaces, waste incinerators, high-temp sealed processes
- Turndown Ratio : 8:1
- Process Temperature Range : Up to 3000 deg F (1649 deg C) with standard block
- Pilot Options : Air pilot; Oxy-fuel pilot
- Nozzle Material : 310 Stainless Steel
- Mounting Options : Vertical/down-fired capable, door-mounted, flange/block design
- Fuel Type : Any fuel gas, including up to 20% hydrogen/80% natural gas blend
- Flame Supervision : Flame rod not available|Provision for UV scanner via 3/4 in NPT port
- Emissions : Exact performance varies by application; consult Honeywell Maxon
- Cooling Requirements : Provide small cooling flow (clean, dry air or oxygen) whenever hot and not firing
- Capacity Range : 1-1/2 in: 2 to 12 MBTU/h (529 to 3173 kW)|2 in: 10-30 MBTU/h (2644 to 7932 kW)(Gas)
- Burner Type : Compact flame oxygen-fuel burner
- Burner Sizes : 1-1/2 and 2 in
- Burner Material : 304 Stainless Steel
- Block Material : Alumina/Mullite refractory
