Scanner Platforms
C-Frames
Honeywell’s scanning and fixed-point C-Frames provide dual-sided sheet measurement for specialized processes and unique locations.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
What Is It?

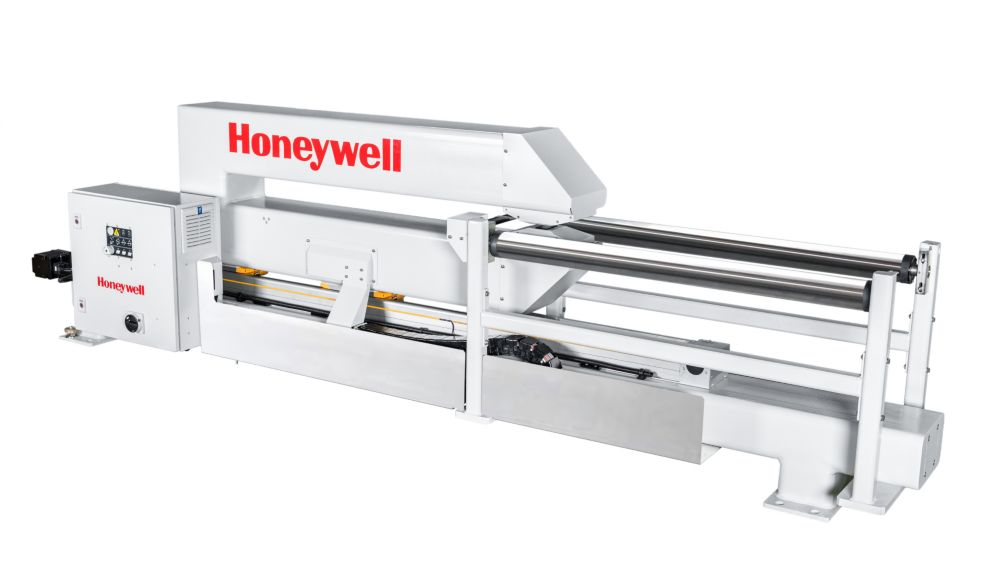

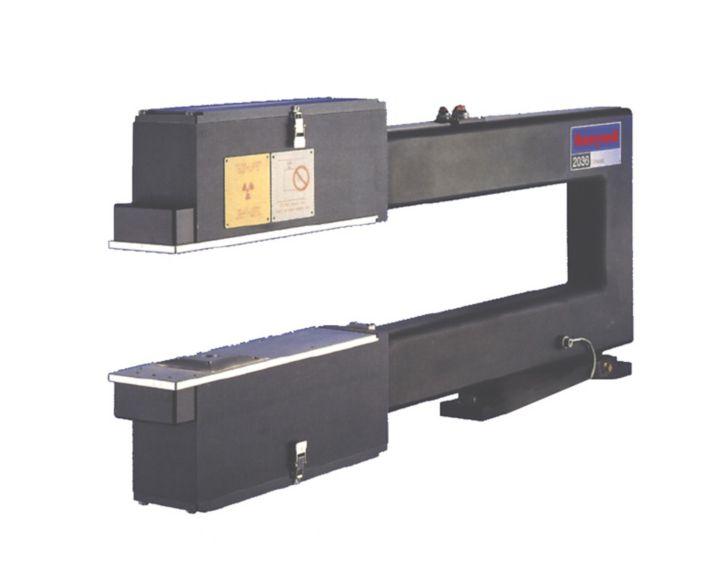

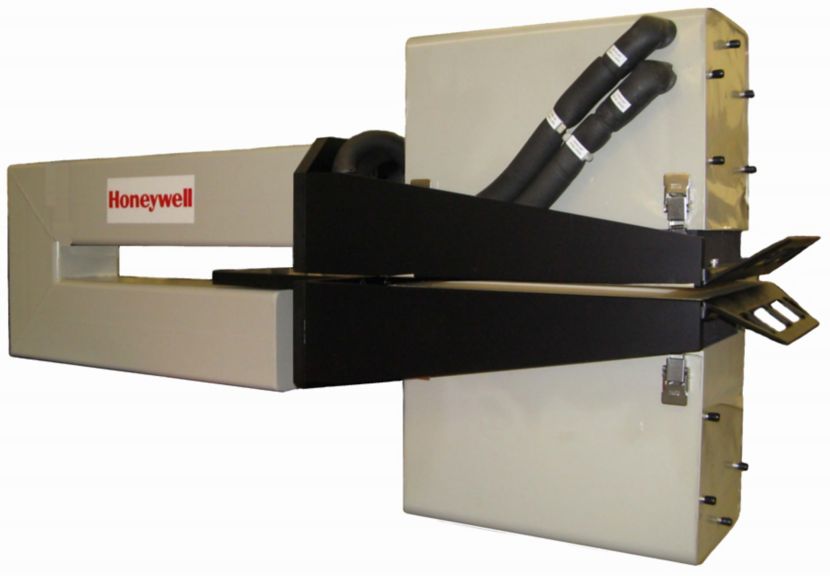

C-Frames are rigid platforms for providing a fixed-point measurement at a specific cross-direction position, or scanning a narrow sheet, with dual-sided sensors.
How Does It Work?
Honeywell’s C-Frames support one, or two, dual-sided sensors to measure sheet properties such as thickness or color.
What Problems Does It Solve?
For applications where traditional O-Frames are not practical, or needed, C-Frames can provide the sheet property measurements the Experion MX Quality Control System uses to monitor and control product quality.
C-Frames are rigid platforms for providing a fixed-point measurement at a specific cross-direction position, or scanning a narrow sheet, with dual-sided sensors.
How Does It Work?
Honeywell’s C-Frames support one, or two, dual-sided sensors to measure sheet properties such as thickness or color.
What Problems Does It Solve?
For applications where traditional O-Frames are not practical, or needed, C-Frames can provide the sheet property measurements the Experion MX Quality Control System uses to monitor and control product quality.
