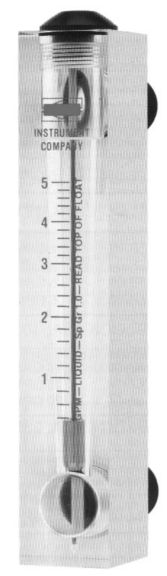

Oil Flow Meters FMO
Oil flow meters used to provide instantaneous flow monitoring for applications using commercially available fuel oils.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
Features & Benefits:
- Low capacity oil flow meters should be installed in a bypass loop for ease of maintenance and to reduce pipe stress on the flow meter body
- They are limited for use with No. 2 fuel oil only and are suitable for applications up to 125 psi (860 kPa) at 70ºF (21ºC)
- Accuracy is +/-4% of full scale reading
Specifications
Measurement, Accuracy & Sensing
- Accuracy
- High Capacity: +/-2% of Full Scale Percentage
- Low Capacity: +/-4% of Full Scale Percentage
- Repeatability
- High Capacity: ±1%
Pressure Specifications
- Pressure Ratings
- High Capacity: 800 psi at 400 deg F
- Low Capacity: up to 125 psi at 70 deg F
Performance, Flow & Capacity
- Minimum Flow Rate
- High Capacity: 0.1 to 3 gpm litre per hour
- Low Capacity: 0.7 to 6.4 gph litre per hour
- Maximum Flow Rate
- High Capacity: 1 to 30 gpm gallons per minute
- Low Capacity: 7.6 to 65 gph gallons per minute
- Flow Coefficient (Cv/Kvs)
- High Capacity: 2.7
Processing & Performance Metrics
- Flow Meter Type
- Low Capacity, High Capacity
Connections & Interfaces
- Connection Size
- High Capacity: 1/4, 3/4, 1-1/4 in NPT inch
- Low Capacity: 1/4 in NPT inch
Measurement, Accuracy & Sensing
- Accuracy
- High Capacity: +/-2% of Full Scale Percentage
- Low Capacity: +/-4% of Full Scale Percentage
- Repeatability
- High Capacity: ±1%
Pressure Specifications
- Pressure Ratings
- High Capacity: 800 psi at 400 deg F
- Low Capacity: up to 125 psi at 70 deg F
Performance, Flow & Capacity
- Minimum Flow Rate
- High Capacity: 0.1 to 3 gpm litre per hour
- Low Capacity: 0.7 to 6.4 gph litre per hour
- Maximum Flow Rate
- High Capacity: 1 to 30 gpm gallons per minute
- Low Capacity: 7.6 to 65 gph gallons per minute
- Flow Coefficient (Cv/Kvs)
- High Capacity: 2.7
Processing & Performance Metrics
- Flow Meter Type
- Low Capacity, High Capacity
Connections & Interfaces
- Connection Size
- High Capacity: 1/4, 3/4, 1-1/4 in NPT inch
- Low Capacity: 1/4 in NPT inch
- Accuracy : High Capacity: +/-2% of Full Scale Percentage|Low Capacity: +/-4% of Full Scale Percentage
- Repeatability : High Capacity: ±1%
- Pressure Ratings : High Capacity: 800 psi at 400 deg F|Low Capacity: up to 125 psi at 70 deg F
- Minimum Flow Rate : High Capacity: 0.1 to 3 gpm litre per hour|Low Capacity: 0.7 to 6.4 gph litre per hour
- Maximum Flow Rate : High Capacity: 1 to 30 gpm gallons per minute|Low Capacity: 7.6 to 65 gph gallons per minute
- Flow Meter Type : Low Capacity, High Capacity
- Flow Coefficient (Cv/Kvs) : High Capacity: 2.7
- Connection Size : High Capacity: 1/4, 3/4, 1-1/4 in NPT inch|Low Capacity: 1/4 in NPT inch
