Residential Medium Pressure Regulators

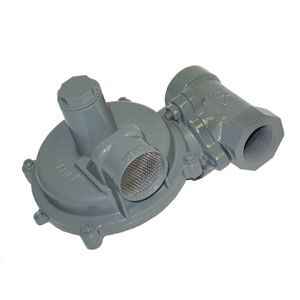

SR100
A compact, high capacity service regulator for residential or light commercial/industrial applications. Inlet pressures up to 125 PSIG (8.6 bar). Sizes 3/4” x 3/4", 3/4” x 1”, 1” x 1" With full capacity internal relief valve.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The SR100 regulator with full capacity internal relief valve. Body variants 90 Degree (Right Angle), 180 Degree (Straight-Flow) or Offset Valve Body . Conforms to ANSI Code B109.4-1998, and CGA Service-Type Regulator Specification CAN/CGA-6.18-M95. Temperature range -20°F to +150°F (-30°C to 65°C). Outlet pressure range 6”WC to 2 PSIG (15 - 138 mbar). It can be mounted in either a vertical or horizontal orientation, is suitable for use with using various hydrocarbon or other non-corrosive gases.
Data Sheet
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Name
Description
File Size
Date
Size
Category@category|Type@type
Filters
Product Number
Please sign in to view part numbers available for purchase based on your account Sign In
Part Number
Description
Leaf Category
Thumbnail
Add to list
12369P038
SCREW 1800 VALVE HEAD,1-1/4"
12369P038
SCREW 1800 VALVE HEAD,1-1/4"
22032P073
NUT,HEX,VALVE HEAD 1800C
22032P073
NUT,HEX,VALVE HEAD 1800C
42710P202
O RING 70 DURO 1800
42710P202
O RING 70 DURO 1800
70008G002
PLUNGER ASSEMBLY SR100 B70
70008G002
PLUNGER ASSEMBLY SR100 B70
70008P006
PLUNGER SR100
70008P006
PLUNGER SR100
70016P019
PIN LEVER SR100
70016P019
PIN LEVER SR100
70017P060
SPRING 12-28# 1813C, 1.8-2# SR100, WHITE
70017P060
SPRING 12-28# 1813C, 1.8-2# SR100, WHITE
70017P138
SPRING 6-8" BLU/YEL SR100
70017P138
SPRING 6-8" BLU/YEL SR100
70017P139
SPRING 7-12" BLU/RED SR100
70017P139
SPRING 7-12" BLU/RED SR100
70017P140
SPRING 13-16" BLU-WHT SR100
70017P140
SPRING 13-16" BLU-WHT SR100
