MCS PRV

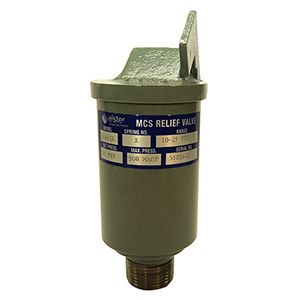

The MCS PRV is recommended for applications where a small, high capacity relief valve is desired.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
The Honeywell MCS Pop Relief Valve is ideally suited for instrument protection, farm taps, gas engines and process industry installations involving air and other gases.
Features & Benefits
Features & Benefits
- Minimum relief pressure setting: 1/2 PSIG (.04 bar) Maximum: 300 PSIG (21 bar)
- Maximum inlet pressure: 500 PSIG (35 bar)
- Rugged Construction - Body is high tensile strength gray iron ASTM A-12666 Class B for standard models. Cast ductile iron ASTM A-445-66 material is also available.
- Seat Discs are Buna N permanently bonded to the seat disc holder. The seat disc holder is die cast aluminum and the adjusting screw is machined aluminum, both are black anodized for corrosion protection.
- 302 Stainless Steel relief spring - All springs snap-fit into adjusting screw for ease of assembly.
- Stainless Steel screen is provided for protection against insects and other foreign matter.
Specifications
General Overview
- Applications
- Instrument protection, farm taps, gas engines, process industry applications
- Product Type
- Pressure Relief Valve (safety device)
- Primary Function
- Protects systems from overpressure by relieving excess pressure
- Compatible Media
- Air and other gases (including hydrocarbon gases)
Construction
- Valve Seat Material
- Buna‑N (bonded to holder) Seat Disc, Die-cast Aluminum Seat Disc Holder
- Spring Material
- 302 Stainless Steel
- Body Material
- High tensile strength gray iron (ASTM A-126 Class B)
Pressure Ratings
- Relief Set Pressure
- 0.5 to 300 psig
- Maximum Inlet Pressure
- 500 psig
- Maximum Flowing Pressure
- Up to 325 psig (depending on spring)
Safety Features
- Overpressure Protection
- Primary function (pressure relief)
Connection Options
- Models
- AF, AM, BF, BM, CF, CM
- Connection Type
- FPT (female), MPT (male threaded)
- Connection Size
- Inlet - 3/4, 1 in, Outlet - None, 1, or 2 in depending on model
Performance
- Flow Range
- 3,500 to 146,900 SCFH depending on pressure range
General Overview
- Applications
- Instrument protection, farm taps, gas engines, process industry applications
- Product Type
- Pressure Relief Valve (safety device)
- Primary Function
- Protects systems from overpressure by relieving excess pressure
- Compatible Media
- Air and other gases (including hydrocarbon gases)
Construction
- Valve Seat Material
- Buna‑N (bonded to holder) Seat Disc, Die-cast Aluminum Seat Disc Holder
- Spring Material
- 302 Stainless Steel
- Body Material
- High tensile strength gray iron (ASTM A-126 Class B)
Pressure Ratings
- Relief Set Pressure
- 0.5 to 300 psig
- Maximum Inlet Pressure
- 500 psig
- Maximum Flowing Pressure
- Up to 325 psig (depending on spring)
Safety Features
- Overpressure Protection
- Primary function (pressure relief)
Connection Options
- Models
- AF, AM, BF, BM, CF, CM
- Connection Type
- FPT (female), MPT (male threaded)
- Connection Size
- Inlet - 3/4, 1 in, Outlet - None, 1, or 2 in depending on model
Performance
- Flow Range
- 3,500 to 146,900 SCFH depending on pressure range
- Applications : Instrument protection, farm taps, gas engines, process industry applications
- Valve Seat Material : Buna‑N (bonded to holder) Seat Disc, Die-cast Aluminum Seat Disc Holder
- Spring Material : 302 Stainless Steel
- Relief Set Pressure : 0.5 to 300 psig
- Product Type : Pressure Relief Valve (safety device)
- Primary Function : Protects systems from overpressure by relieving excess pressure
- Overpressure Protection : Primary function (pressure relief)
- Models : AF, AM, BF, BM, CF, CM
- Maximum Inlet Pressure : 500 psig
- Maximum Flowing Pressure : Up to 325 psig (depending on spring)
- Flow Range : 3,500 to 146,900 SCFH depending on pressure range
- Connection Type : FPT (female), MPT (male threaded)
- Connection Size : Inlet - 3/4, 1 in, Outlet - None, 1, or 2 in depending on model
- Compatible Media : Air and other gases (including hydrocarbon gases)
- Body Material : High tensile strength gray iron (ASTM A-126 Class B)
