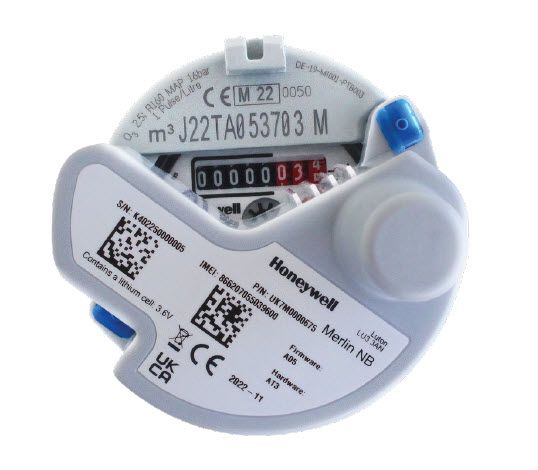

Merlin Clip-on
The Merlin NB-IoT Clip-On enhances the digitisation of water meters.
Please sign in to access more documents
Once signed in, you may be able to access additional documents for your account.
Overview
This AMI solution for residential water meters helps you make the most of every drop of water before damages can wreak havoc on water networks, operations and sustainability efforts. To minimize leaks, loss of non-revenue water, associated costs, and improve network resiliency, the Merlin NB-IoT Clip-On:
- Collects and manages data
- Provides detailed analytics for targeted upgrades and repairs
- Sends revenue protection, leak, suspected tampering and improper flow notifications that can reduce non-revenue water
- Improves distribution and grid efficiency
- Optimises overall operational performance
Specifications
Others
- Ambient Temperature Range
- -10 to +55 deg C
- Water Meter Compatibility
- V200, V210, S150, S220, H4000, C4000
- Supported Alarms
- Leak, burst, backflow, no consumption, over‑temperature, magnet detection, device removal, low battery
- SIM Capability
- eSIM MFF2 format with optional eUICC support
- Radio Module
- Cellular NB-IoT
- Radio Bands Supported
- Band 3, Band 8, Band 20
- Network Technology
- Cellular Narrowband IoT (NB‑IoT)
- Mounting Type
- Clip‑on module (paired or retrofit to existing meter base)
- Ingress Protection
- IP68
- Dimensions
- 80 x 95 x 80 mm
- Data Types & Alarms
- Consumption data, profile data, event and alarm data
- Data Encryption
- AES‑128 bit encryption
- Configuration Method
- Integrated NFC interface
- Casing Material
- Polycarbonate - Flame-Retardant, Self-Extinguishing Plastic
- Battery Lifetime
- 12 years (up to 30 deg C ambient temperature) in coverage mode 2
- 15 years (up to 30 deg C ambient temperature) in coverage modes 0 and 1
- Approvals
- Radio Equipment Directive 2014/53/EU, 3GPP GCF
Others
- Ambient Temperature Range
- -10 to +55 deg C
- Water Meter Compatibility
- V200, V210, S150, S220, H4000, C4000
- Supported Alarms
- Leak, burst, backflow, no consumption, over‑temperature, magnet detection, device removal, low battery
- SIM Capability
- eSIM MFF2 format with optional eUICC support
- Radio Module
- Cellular NB-IoT
- Radio Bands Supported
- Band 3, Band 8, Band 20
- Network Technology
- Cellular Narrowband IoT (NB‑IoT)
- Mounting Type
- Clip‑on module (paired or retrofit to existing meter base)
- Ingress Protection
- IP68
- Dimensions
- 80 x 95 x 80 mm
- Data Types & Alarms
- Consumption data, profile data, event and alarm data
- Data Encryption
- AES‑128 bit encryption
- Configuration Method
- Integrated NFC interface
- Casing Material
- Polycarbonate - Flame-Retardant, Self-Extinguishing Plastic
- Battery Lifetime
- 12 years (up to 30 deg C ambient temperature) in coverage mode 2
- 15 years (up to 30 deg C ambient temperature) in coverage modes 0 and 1
- Approvals
- Radio Equipment Directive 2014/53/EU, 3GPP GCF
- Ambient Temperature Range : -10 to +55 deg C
- Water Meter Compatibility : V200, V210, S150, S220, H4000, C4000
- Supported Alarms : Leak, burst, backflow, no consumption, over‑temperature, magnet detection, device removal, low battery
- SIM Capability : eSIM MFF2 format with optional eUICC support
- Radio Module : Cellular NB-IoT
- Radio Bands Supported : Band 3, Band 8, Band 20
- Network Technology : Cellular Narrowband IoT (NB‑IoT)
- Mounting Type : Clip‑on module (paired or retrofit to existing meter base)
- Ingress Protection : IP68
- Dimensions : 80 x 95 x 80 mm
- Data Types & Alarms : Consumption data, profile data, event and alarm data
- Data Encryption : AES‑128 bit encryption
- Configuration Method : Integrated NFC interface
- Casing Material : Polycarbonate - Flame-Retardant, Self-Extinguishing Plastic
- Battery Lifetime : 12 years (up to 30 deg C ambient temperature) in coverage mode 2|15 years (up to 30 deg C ambient temperature) in coverage modes 0 and 1
- Approvals : Radio Equipment Directive 2014/53/EU, 3GPP GCF
